Top Tools for Earth Retention Systems

Building on foundational systems, here are the top tools for earth retention systems, prioritizing anchored methods recommended by the Deep Foundations Institute Anchored Earth Retention Committee. These solutions excel in retaining walls and soldier pile walls, offering reliable support in challenging soils. We at Helical Technology supply proven options for contractors nationwide.

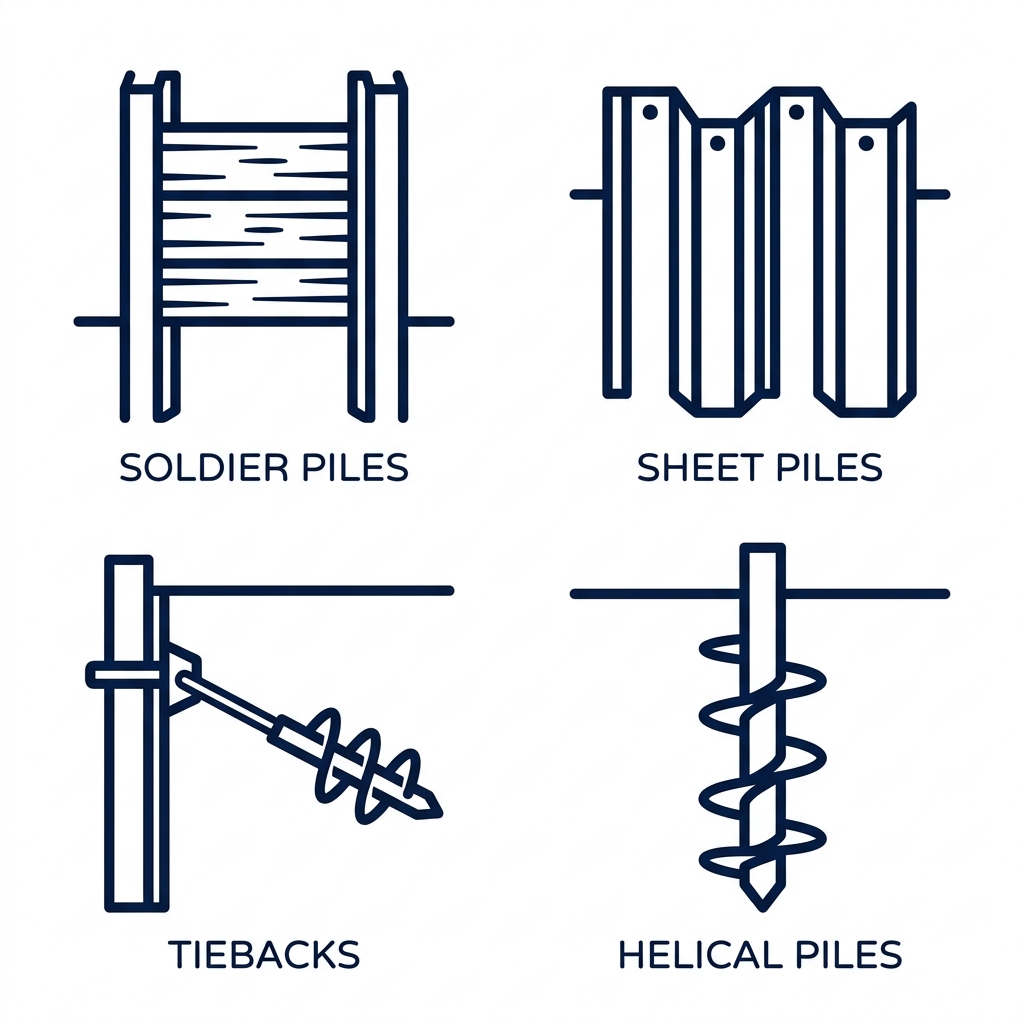

Icon grid of top tools for earth retention: soldier piles, sheet piles, tiebacks, helical piles.

Key tools include:

• Soldier pile walls: Driven steel H-piles with lagging panels; installed by drilling and grouting; ideal for urban excavations in cohesive soils per DFI guidelines.
• Sheet piling: Interlocking steel sheets vibrated or driven into ground; quick for temporary systems for earth retention in soft clays; suits waterfront projects.
• Tieback anchors: Prestressed tendons grouted into soil/rock; drilled and tensioned for lateral support; versatile for permanent retaining walls.
• Helical piles: Screwed into soil with minimal vibration; provide immediate load capacity; perfect low-disturbance alternative in sensitive areas, as in landslide stabilizations.

These tools enhance project efficiency. Explore our ICC-certified helical piles for your needs–consult our engineering team. Proper selection leads to effective implementation–see installation guides next.

Consult a structural engineer for project-specific guidance.

Helical Tiebacks

Within earth retention systems, helical tiebacks offer a specialized anchoring solution for stabilizing structures like retaining walls and soldier pile walls. These consist of steel shafts with helical plates that screw directly into the ground, providing lateral support without the need for driven anchors.

Helical tiebacks advance via torque-driven rotation, eliminating soil removal, vibrations, and drilling spoils. This makes them ideal for limited-access urban sites. Installation is rapid, with immediate load testing possible through torque correlation to capacity. As an advanced earth anchoring system, they typically achieve 15-50 tons per tieback, depending on helix configuration and soil conditions.

Key benefits include:

• Vibration-free installation suitable for sensitive environments
• No grouting required, unlike traditional methods, enabling faster deployment
• Versatile applications in anchoring soldier pile walls, sheet pile walls, and temporary shoring for earth retention systems

Compared to grouted tiebacks, they avoid drilling and allow instant verification. The Deep Foundations Institute, an authoritative industry association, highlights such techniques in their Anchored Earth Retention Committee resources for best practices in ground anchors.

At Helical Technology, we supply ICC-certified products for these systems. Consult our network of structural engineers for project-specific guidance to ensure compliance with building codes. These advantages are demonstrated in real projects, as explored next and within our project portfolio.

Helical Anchors

Helical anchors extend load transfer from general foundations into stable soils, serving as advanced earth anchoring systems within earth retention systems. These specialized geotechnical tools consist of steel shafts with one or more helical bearing plates welded to the shaft. At Helical Technology, we distribute ICC- and ISO-certified helical anchors that contractors install by rotating them into the ground, where the plates bear on soil to develop capacity.

Installation occurs via a hydraulic torque motor, achieving precise embedment based on applied torque. This method provides immediate load-carrying capacity without soil disturbance or vibration, making it ideal for sensitive sites. Torque correlation, verified per Deep Foundations Institute guidelines, confirms anchor performance directly during installation. We support our network of contractors with engineering resources to ensure compliance and efficiency.

In earth retention systems, helical anchors excel as tiebacks for retaining walls and soldier pile walls, as well as temporary shoring solutions. Their rapid installation and removability suit short-term projects, offering advantages over alternatives like plate anchors. Key benefits include:

• Predictable capacity through torque-to-capacity relationships
• Minimal site disruption
• Reusability for temporary earth retention systems

The Deep Foundations Institute Anchored Earth Community, an authoritative industry association, provides best practices for these applications. Consult our structural engineers for project-specific guidance in retaining walls and beyond.

Helical Piles in Soldier Pile and Retaining Walls

Beyond general foundations, helical piles excel in specialized earth retention systems, particularly soldier pile walls and retaining walls. We at Helical Technology supply these advanced earth anchoring systems for efficient construction. Soldier pile walls consist of vertical steel beams, or soldier piles, embedded in drilled holes and braced with lagging boards for temporary or permanent earth retention.

Helical piles serve as soldier piles by advancing screw-like sections into the soil without excavation or spoils. Achieve rapid installation in 1-2 hours per pile with zero vibration, protecting adjacent structures in urban sites where access limits concrete use. These systems deliver high load capacities up to 500 kips axial, ideal for tight spaces and high-demand applications.

The Deep Foundations Institute (DFI)’s Anchored Earth Retention Committee provides authoritative industry association community guidelines for deep foundation practices, including anchored soldier pile walls with helical anchors. Their resources emphasize best practices for systems for earth retention, enhancing design and construction quality through education and specifications.

Helical piles in retaining walls minimize long-term settlement issues compared to driven piles, reducing needs for concrete repair denver co. Our ICC and ISO Certified products ensure reliability. Explore DFI resources or contact our network of structural engineers for project-specific guidance on your earth retention systems.

Comparing Earth Retention Solutions

When selecting earth retention systems, key metrics reveal clear leaders among solutions like helical anchors, soil nails, soldier pile walls, and sheet piles. Comparing these earth retention systems helps construction professionals prioritize efficiency, cost, and site impacts for optimal project outcomes.

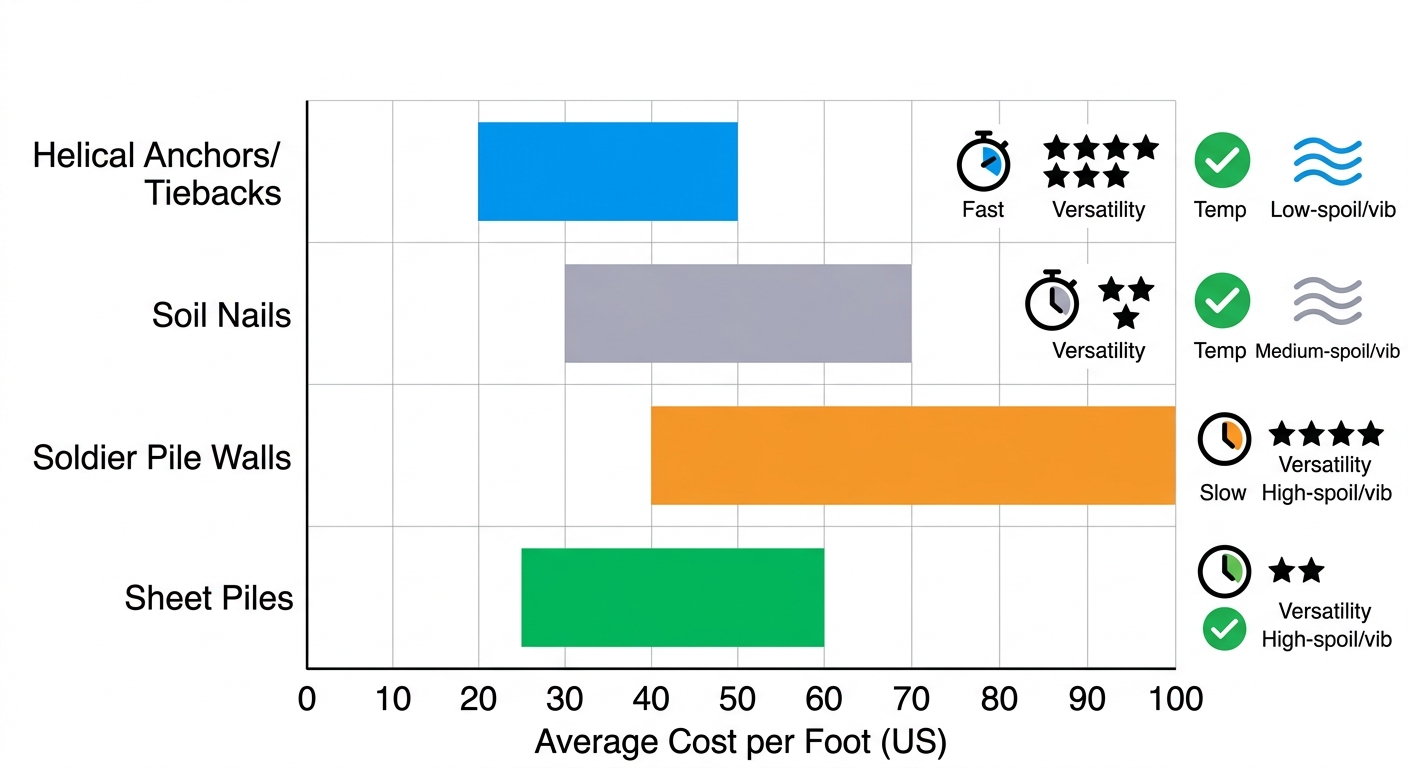

Earth retention solutions cost and performance comparison chart

The chart above highlights helical anchors’ advantages in cost per foot and installation speed, underscoring their edge in varied soils. These visuals align with Deep Foundations Institute benchmarks, showing helical systems’ minimal disruption compared to traditional retaining walls methods.

This table provides a side-by-side comparison of helical-based tools against traditional methods, focusing on key performance metrics for construction professionals.

Earth Retention Systems Comparison

Note helical’s superior speed, low vibration, and removability versus competitors’ noise or permanence, per Deep Foundations Institute Anchored Earth Community data, ICC-ES certified helical product specifications, and US construction industry averages for shoring systems. Soldier pile walls suit retaining walls with lagging but lag in vibration control. These advantages make helical ideal for temporary earth retaining structures. Local concrete contractors denver co leverage helical benefits for efficient shoring in Littleton projects.

Choosing the Right Earth Retention Strategy

With the basics of earth retention systems covered, now evaluate your options to prevent failures like wall collapses. Site-specific variables, such as soil type and excavation depth, demand tailored choices for safety and efficiency.

• Soil stability: Assess cohesion and friction angles.
• Load-bearing needs: Match to surcharge and seismic risks.
• Temporary vs. permanent use: Prioritize durability for long-term projects.
• Cost per linear foot: Balance upfront and lifecycle expenses.
• Installation timeline: Factor in mobilization speed.

Basic retaining walls suit shallow cuts under 10 feet, while soldier pile walls handle 10-20 foot depths effectively. For high-load or seismic zones, anchored earth systems excel, as Deep Foundations Institute insights highlight through guidelines on ground anchors and tiebacks.

Consider this decision tree: If budget under $50 per square foot, opt for soldier pile walls; otherwise, explore anchored solutions. We at Helical Technology recommend consulting helical pile experts–or even porch builders near me for hybrid projects–for custom assessments. Once chosen, proper installation ensures success; see next on deployment.
