Deep Foundation Stabilization Essentials

When surface soils fail, deep foundation stabilization provides the solution by transferring structural loads to deeper, competent soil or bedrock layers, preventing settlement. This essential technique supports sinking foundations, slab settlement, and retaining walls in expansive clay soils. We at Helical Technology specialize in advanced earth anchoring systems like helical piers and push piers for reliable foundation repair solutions.

Helical piers, or helical pile systems, are screw-like steel shafts rotated into the ground, achieving load capacities up to 500 kips per pier through torque correlation. In contrast, push piers consist of steel pipe sections hydraulically driven until refusal, with capacities derived from external skin friction. These ICC and ISO Certified products differ in installation–helical piers advance via rotation without soil removal, while push piers rely on driving resistance–making each suitable for specific soil conditions.

Installation involves site preparation, precise pier placement, advancement to target depth or resistance, and secure connection via brackets. We verify performance through load testing protocols, such as quick load tests to 200% design load. Proper Helical Pier System Termination ensures long-term stability. Consult our network of structural engineers for project-specific guidance. Next, explore specific termination criteria for optimal performance.

Consult a structural engineer or our engineering team for project-specific design and installation guidance.

Understanding Deep Foundation Stabilization

Signs Indicating Need for Stabilization

Deep foundation stabilization becomes essential when structures show clear distress from soil movement. Homeowners and engineers should watch for specific indicators that uneven settling affects deep foundations, such as those supporting basements or piers.

• Differential settlement: This occurs when one part of the foundation sinks unevenly compared to others, often due to erosion or poor compaction beneath. Imagine a home in Littleton, CO, where one corner drops 2 inches over years, causing doors to stick. According to industry observations, this uneven sinking stresses beams and requires prompt assessment.
• Cracks in walls or floors: Vertical cracks wider than 1/4 inch signal tension from shifting supports, while horizontal ones indicate pressure buildup. In a real-world example, a Baltimore residence developed stair-step patterns in brick veneer, pointing to foundation shifts needing intervention.
• Sloping floors: Test by rolling a marble; if it consistently travels one way, floors may slope over 1 inch in 20 feet. This subtle sign, common in expansive clay areas, demands professional evaluation to prevent further progression. Acting early preserves structural integrity and avoids costly repairs.

Core Methods and Technologies

We at Helical Technology supply advanced earth anchoring systems for reliable deep foundation stabilization. Primary techniques include helical piers and push piers, each suited to soil conditions.

Helical piers feature steel shafts with screw-like helical plates advanced into stable strata via torque. These bypass weak upper soils, relying on helix friction for load-bearing capacity. Ideal for loose sandy or unstable conditions, they install vibration-free, as seen in challenging environments. Allocate about 75 words here for mechanics and suitability.

Push piers, or pushing pier technology, use hydraulic rams to drive steel sections into the ground until firm resistance. Best for cohesive clays where skin friction grips sections, they provide robust support but may require pre-drilling in dense soils. Steel Foundation Underpinning complements these piers, offering brackets for targeted reinforcement in comprehensive repairs.

A real-world engineering case study from ASCE (American Society of Civil Engineers) demonstrates helical piers in wet soils for electrical infrastructure, reducing timelines versus concrete by enabling immediate loading.

Role of Helical Piers in Stabilization

Helical piers are steel shafts fitted with helical plates, screwed into competent load-bearing strata to stabilize deep foundations. At Helical Technology, our ICC and ISO Certified products ensure compliance for such foundation repair solutions.

Installation torques the assembly 20-50 feet deep, transferring loads directly past weak zones to stable layers. This mechanic mimics a screw advancing through soft material, achieving immediate stability without soil excavation.

Advantages include vibration-free installation minimizing disruption, instant load transfer for quick recovery, and high capacity in variable soils like expansive clays. As ASCE notes in their case study on steel piles replacing concrete, helical pier systems excel in soft or wet conditions, supporting heavy infrastructure with minimal site impact. Consult our network of structural engineers for project-specific designs–next, explore the installation process in detail.

Benefits of Deep Foundation Stabilization

Building on installation techniques discussed previously, deep foundation stabilization delivers critical advantages for commercial structures, including enhanced load capacity, minimized settlement, and long-term reliability. At Helical Technology, we supply ICC-certified helical piers that achieve these outcomes efficiently, supporting engineers and contractors nationwide from our base in Littleton, Colorado.

Enhanced Structural Integrity

Helical piers provide superior structural integrity by transferring building loads through incompetent soils to stable strata using helical plates. This method ensures immediate load-bearing capacity, determined precisely by installation torque, eliminating reliance on concrete curing times.

Key durability benefits include:

• Steel shafts with corrosion-resistant coatings, offering 75+ year lifespans even in aggressive environments.
• Predictable performance without excessive settlement, as verified by torque correlation to capacity.
• Galvanized or epoxy-protected designs that withstand environmental stresses.

These features make helical piers ideal for demanding commercial applications, transitioning seamlessly to their edge over alternatives.

Advantages Over Traditional Methods

Helical piers outperform alternatives like push piers through vibration-free, torque-based installation that requires no soil excavation or heavy equipment spoils. This results in 30-50% faster project timelines compared to driven or pushed systems.

Comparative benefits include:

• No vibrations that risk adjacent structures, unlike impact-driven push piers.
• Immediate stability post-installation, bypassing concrete’s curing delays.
• Cost efficiencies demonstrated in real-world projects, such as the American Society of Civil Engineers (ASCE) case study where steel piles replaced concrete for electrical infrastructure, slashing construction time while handling loads up to 3,855 kN compression.

The ASCE example highlights steel piles’ efficiency over traditional concrete methods in infrastructure, paving the way for their use in tough site conditions.

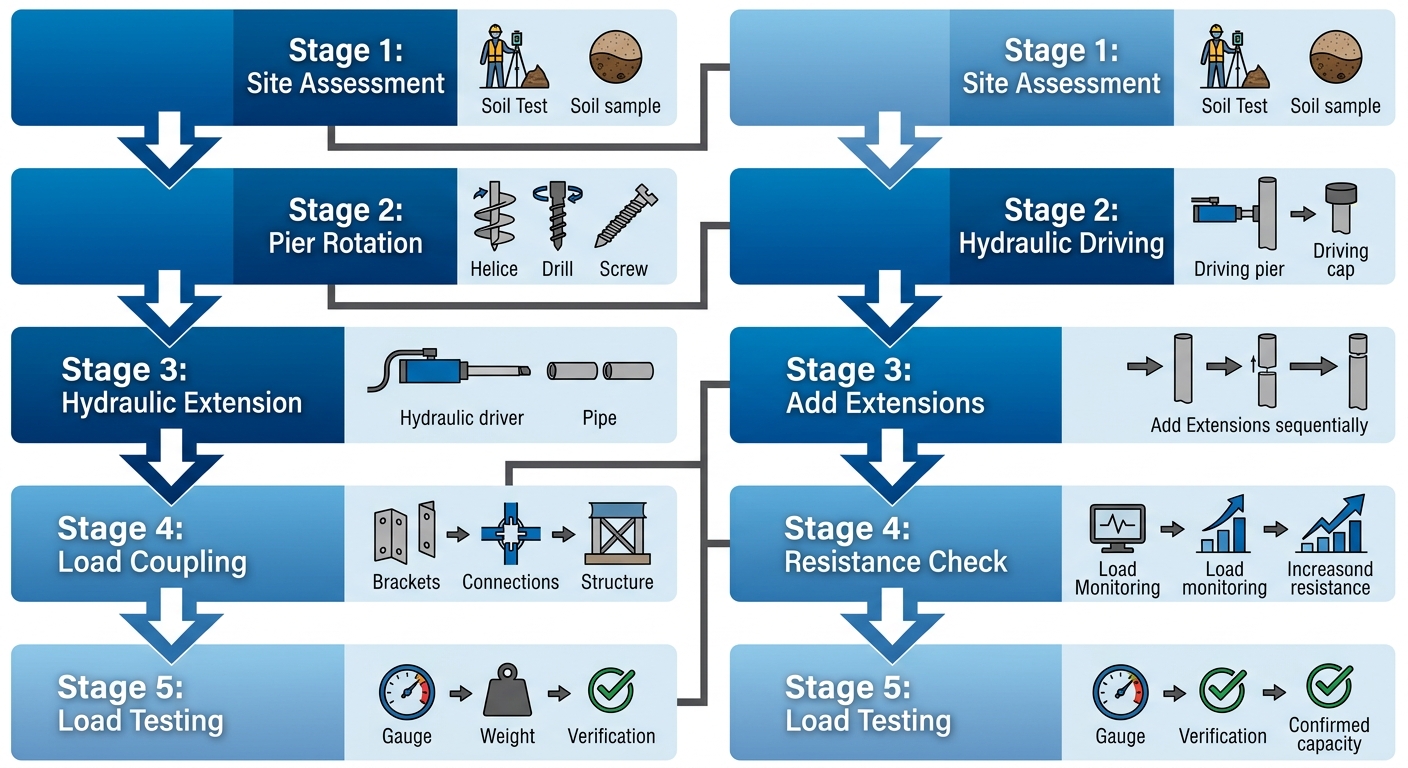

Deep foundation stabilization process with helical and push piers steps

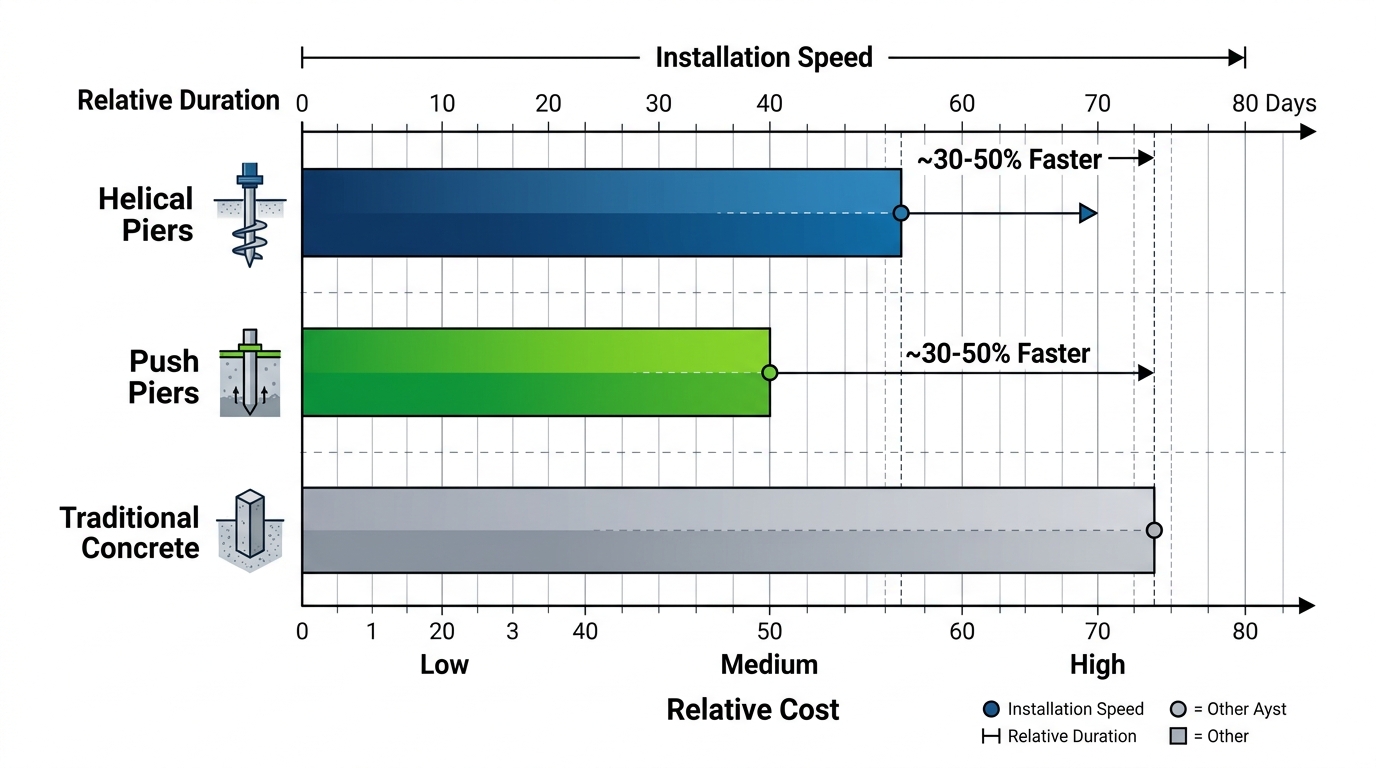

Comparison chart: helical piers fastest and efficient vs push piers and concrete

This visual underscores helical piers‘ time and cost savings. Such efficiencies prove invaluable in scenarios demanding quick, reliable foundations without disruption.

Applications in Challenging Conditions

Deep foundation stabilization excels in expansive clays, liquefiable sands, and seismic zones, where helical pile systems anchor commercial buildings like warehouses and substations securely. Their screw-in action navigates poor soils effectively, as shown in ASCE-documented projects in wet environments.

Proven applications feature:

• Urban retrofits with minimal site disturbance for brownfield expansions.
• High-load towers using eight helical piers per leg, capped by steel beams for optimal distribution.
• Integration as part of an advanced earth anchoring system in sensitive areas.

We recommend consulting our network of structural engineers for site-specific designs compliant with ICC-ES AC358 criteria. These benefits shine in real case studies explored next.

How Deep Foundation Stabilization Works

Deep foundation stabilization addresses structural settlement by transferring loads to competent soil strata below expansive or weak surface layers. At Helical Technology, we supply helical piers and push piers that excel in this task. Helical piers advance through torque-based screwing, ideal for variable soils, while push piers rely on displacement and hydraulic driving for dense conditions, ensuring immediate load-bearing capacity as demonstrated in challenging environments.

Helical Piers Mechanism

Helical piers, also known as screw piles, stabilize foundations by screwing into the ground to reach load-bearing strata. This torque-driven method minimizes soil disturbance and suits sites with mixed soil profiles.

1. Site assessment: Engineers evaluate soil conditions using geotechnical reports to determine pile length and helix configuration for optimal load-bearing capacity.
2. Helical pile screwing: A lead section with helical plates is rotated into the soil via hydraulic torque motor until target depth and resistance are achieved.
3. Hydraulic extension: Pipe extensions are coupled and advanced to transfer the structure’s load to the stable soil stratum.
4. External sleeve coupling: Brackets or floor stabilizer post kit connect the pier to the foundation, enabling efficient load transfer.

This process provides verifiable installation torque correlating directly to capacity, making helical piers reliable for deep foundation stabilization projects.

Comparison chart: helical piers fastest and efficient vs push piers and concrete

Deep foundation stabilization process with helical and push piers steps

The diagram illustrates these stages, highlighting how helical piers integrate seamlessly with push methods for comprehensive support.

Push Piers Installation Process

Unlike torque-based helical piers, push piers use a displacement method, driving steel sections into the ground with hydraulic force until resistance confirms competent support.

1. Parent pier driving: Hydraulic rams press the initial pier section into the soil adjacent to the foundation using the structure’s weight for reaction.
2. Internal pipe extensions: As resistance builds, additional pipe segments are hydraulically inserted inside the parent section.
3. Resistance verification: A clutch lock engages at peak resistance, indicating load-bearing stratum penetration.
4. Load testing: Incremental loading confirms the pier’s capacity before final connection.
5. Final hydraulic retraction: Excess hydraulic pressure is released, securing the assembly for long-term performance.

This sequenced approach ensures precise depth control and high load capacity in dense soils.

Material Durability Considerations

Both helical piers and push piers feature steel construction engineered for decades of service. Corrosion prevention is critical for sustained deep foundation stabilization.

Hot-dip galvanization applies a thick zinc coating, typically 3-5 mils minimum per ASTM A123 standards, forming a sacrificial barrier against oxidation. Epoxy coatings provide additional protection in aggressive soils, encapsulating steel to prevent moisture ingress.

An industry case study by the American Society of Civil Engineers (ASCE) demonstrates steel piles’ superiority over concrete, noting protective coatings like galvanization ensure longevity in wet environments, with field installations exceeding 50 years without significant degradation. At Helical Technology in Littleton, CO, our ICC-certified products incorporate these treatments, backed by our network of structural engineers.

Consult our engineering team for project-specific guidance to comply with building codes and maximize durability.

Best Practices for Deep Foundation Stabilization

Building on the stabilization needs highlighted in foundation failure discussions, effective deep foundation stabilization practices safeguard structures against soil movement and settlement. At Helical Technology, we emphasize rigorous protocols using our ICC and ISO certified products to deliver foundation repair solutions that enhance load-bearing performance, enhancing long-term structural resilience.

Site Assessment and Soil Testing

Comprehensive site evaluation forms the cornerstone of successful deep foundation projects. Begin with Standard Penetration Test (SPT) and Cone Penetration Test (CPT) as primary methods to quantify soil resistance and stratigraphy.

Hire certified geotechnical engineers for detailed bore log analysis, identifying potential hazards like expansive clays or collapsible soils through Atterberg limits testing.

1. Conduct SPT at 5-foot intervals to measure blow counts.
2. Perform CPT for continuous soil profiling and friction ratios.
3. Map groundwater table using piezometers for fluctuation data.

These steps mitigate risks, ensuring stabilizing deep foundations aligns with site-specific conditions. Our engineering support team in Littleton, CO, assists contractors with interpreting results for optimal design.

Once site data is gathered, attention turns to precise installation methods tailored to unstable soils.

Installation Techniques in Unstable Soils

In challenging ground conditions, helical piers and push piers excel when installed with field-tested precision. For helical piers, pre-drill through dense layers, then monitor torque to a minimum of 5000 ft-lbs to confirm capacity.

Push piers advance via hydraulic driving, verifying load transfer with monitoring brackets at 12 inches per minute. Apply galvanized coatings for corrosion protection across both systems.

Sequence installations from exterior to interior walls to maintain structural plumb. Complementary plate anchors address lateral loads alongside helical piers in our advanced earth anchoring systems.

1. Pre-drill and torque helical sections incrementally.
2. Drive push piers with hydraulic rams, bracketing nail plates.
3. Verify each pier’s performance before load transfer.

This approach, backed by our training programs, minimizes disruption and ensures durability.

With techniques defined, strategic planning determines the best method for each project.

Method Selection and Project Planning

Select between helical piers and push piers using this decision matrix:

• Helical piers: Ideal for vibration-free installation with immediate load transfer; suited to variable soils ($300-500 per linear ft).
• Push piers: Best for compacting dense soils; lower initial cost ($250-400 per linear ft).

Factor lifecycle savings from helical piers’ rapid installation speed. Include 20% contingency in preliminary budgeting for soil variability.

Consult our network of structural engineers for project-specific guidance, ensuring compliance with building codes and ICC-ES criteria. These deep foundation stability practices set the stage for real-world case studies demonstrating long-term success.

Advancing Projects with Deep Foundation Stabilization

Overcoming unstable soils and foundation settlement issues, deep foundation stabilization advances construction projects by transferring structural loads to deeper, competent layers using specialized piers. We at Helical Technology supply ICC and ISO Certified products like helical piers and push piers to ensure stability, efficiency, and reliability for contractors nationwide across diverse soil conditions and project types.

Helical piers are screw-like piles installed by rotating them into the ground, offering vibration-free advancement ideal for lightweight structures and poor soil conditions. This method provides immediate load-bearing capacity without extensive excavation, minimizing disruption on job sites.

Push piers consist of steel shafts hydraulically driven to refusal, excelling with heavier loads and existing structures requiring uplift resistance. These complement piers with wall plate anchors for enhanced lateral stability and wall connections.

Key benefits include:

• Minimized downtime and faster project timelines
• Cost savings over full foundation replacement
• Versatility for residential, commercial, and infrastructure applications
• Long-term durability with our advanced earth anchoring systems

Deep foundation stabilization positions projects for enduring success. Consult our network of structural engineers for project-specific guidance, ensuring compliance with building codes.
