The Role of Structural Injection Epoxy in Foundation Repair

When cracks threaten foundation stability, structural injection epoxy provides a proven fix. This low-viscosity, moisture-tolerant, two-component adhesive is injected under low pressure (20-100 psi) into cracks, bonding faces together and preventing water infiltration. At Helical Technology, we supply these foundation repair solutions as part of our ICC-certified crack repair products.

The epoxy injection process suits cracks 0.002 to 0.25 inches wide, including dormant, active, and wet types in horizontal, vertical, or overhead orientations. First, clean the crack thoroughly. Next, install injection ports at 6-12 inch spacing. Then, seal the surface with epoxy paste. Finally, inject from bottom ports upward until resin extrudes from the next port, per Texas Department of Transportation (TxDOT) guidelines for authoritative state procedures adapted to foundations.

Key benefits include high tensile strength (>10,000 psi), full-depth penetration for concrete crack repair, permanent waterproofing, and restoration of 90-100% pre-crack load capacity. Unlike gravity filling, epoxy crack injection excels for fine cracks, ensuring no voids via TxDOT-recommended bond strength testing.

This method is ideal for foundation walls, slabs, and piers in residential and commercial settings, delivering durable results. Implementing this method requires precise execution, as detailed next.

Understanding Structural Injection Epoxy

At Helical Technology, we provide Concrete Crack Repair Epoxy as part of our foundation repair solutions. Structural injection epoxy represents a high-performance material for restoring concrete integrity. This section explores its definition, key uses in foundation repair, the epoxy crack injection process, and signs that indicate repairs are necessary.

What is Structural Injection Epoxy?

Structural injection epoxy is a low-viscosity, two-part epoxy resin system designed for pressure injection into cracks wider than 0.002 inches, as outlined in Texas Department of Transportation guidelines. It features thermosetting properties that form a rigid bond stronger than surrounding concrete upon curing. This material mixes automatically during injection, ensuring deep penetration into fine fissures.

Unlike polyurethane, which offers flexibility for dynamic cracks, structural injection epoxy provides superior rigidity for static, load-bearing repairs. Texas Department of Transportation standards specify Type IX low-viscosity epoxy for such applications, meeting ASTM C 881 requirements. Homeowners and contractors value its durability in preventing water infiltration and structural weakening.

These qualities make epoxy injection for structures ideal for long-term stability. Beyond definition, consider its practical applications in demanding environments.

Key Uses in Foundation Repair

We recommend structural injection epoxy for concrete crack repair in horizontal, vertical, and overhead foundation cracks to restore structural integrity. It excels in load-bearing elements like walls and slabs, stabilizing structures against settlement or seismic stress. Contractors apply it to seal voids from honeycombing or spalling, enhancing overall load capacity.

Products like Concrete Crack Repair Epoxy support these uses through precise injection capabilities. Texas Department of Transportation procedures highlight its role in infrastructure maintenance, preventing chloride ingress and deterioration. This approach suits both residential basements and commercial footings.

Building on these uses, the process ensures reliable results through systematic steps.

Epoxy Crack Injection Basics

Epoxy crack injection begins with surface preparation, sealing the crack perimeter using Type V or VII epoxy adhesive per Texas Department of Transportation guidelines. Install injection ports at 6-8 inch intervals, not exceeding crack depth, along the fissure.

1. Inject low-pressure epoxy from the bottom port upward until refusal at each station.
2. Monitor gel time and viscosity for optimal flow into narrow cracks.
3. Allow 24-48 hours for full curing before removing ports and excess material.

This method suits dormant cracks wider than 0.005 inches effectively. Skilled crews, trained by manufacturers, achieve quality assurance. Knowing when to act is crucial, as seen in common indicators.

Signs Concrete Cracks Require Repair

Cracks wider than 1/8 inch signal potential structural issues demanding crack injection epoxy. Active water seepage through fissures indicates urgent intervention to halt erosion.

Key indicators include:

• Displacement or spalling around cracks, suggesting load shifts.
• Diagonal cracks pointing to differential settlement.
• Structural symptoms like sticking doors, uneven floors, or wall bowing.

Texas Department of Transportation emphasizes early repair to maintain safety. Addressing these promptly with repairing concrete cracks with epoxy preserves property value and prevents escalation. Consult our engineering team for tailored foundation repair solutions.

Benefits of Structural Injection Epoxy

After identifying cracks in concrete structures, structural repair epoxy delivers targeted benefits through pressure injection methods. At Helical Technology, we supply these solutions to contractors nationwide, emphasizing deep penetration into fine cracks, restoration of tensile strength to 100-150% of original concrete, permanent non-flexible bonding, and long-term durability as outlined in Texas Department of Transportation (TxDOT) guidelines. These advantages make structural injection epoxy ideal for restoring foundation integrity without extensive demolition.

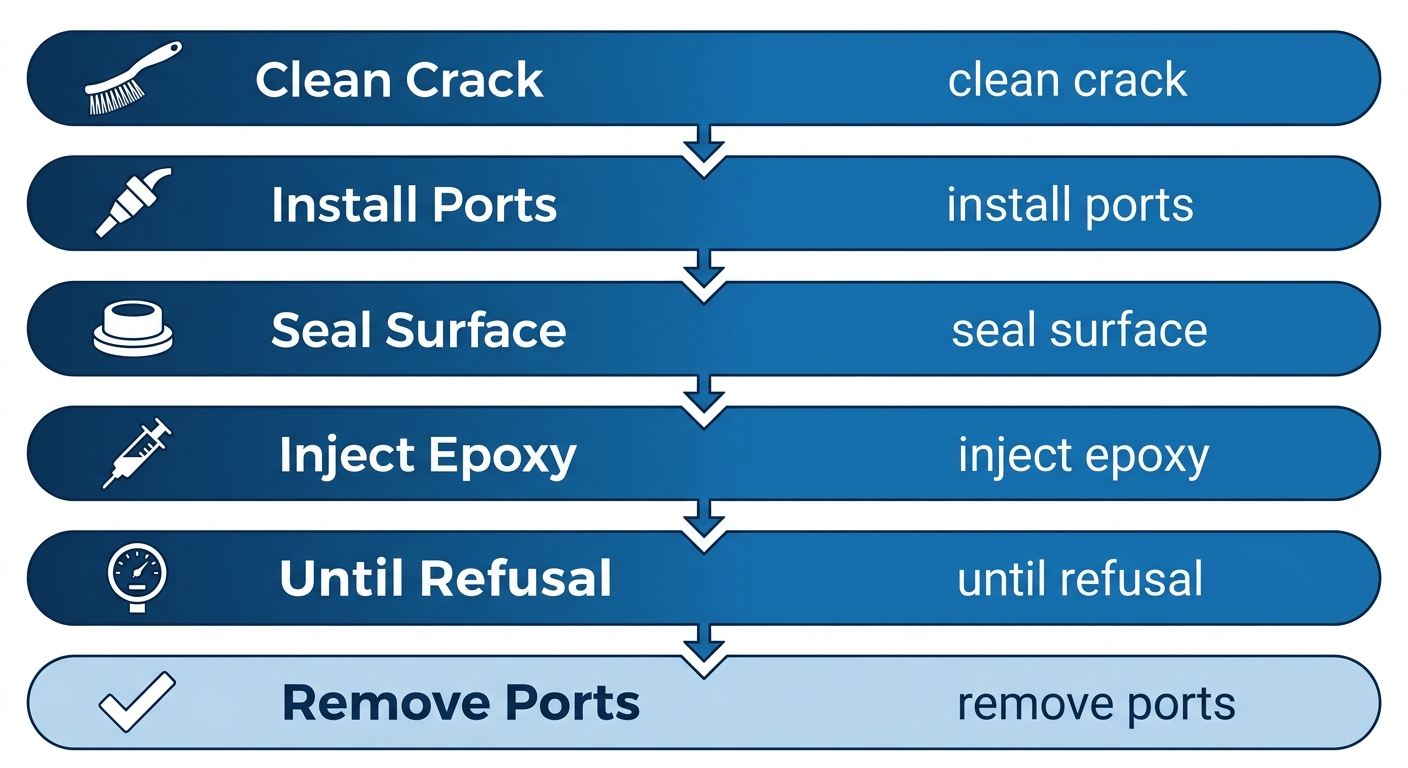

Step-by-step TXDOT epoxy injection process for foundation crack repair

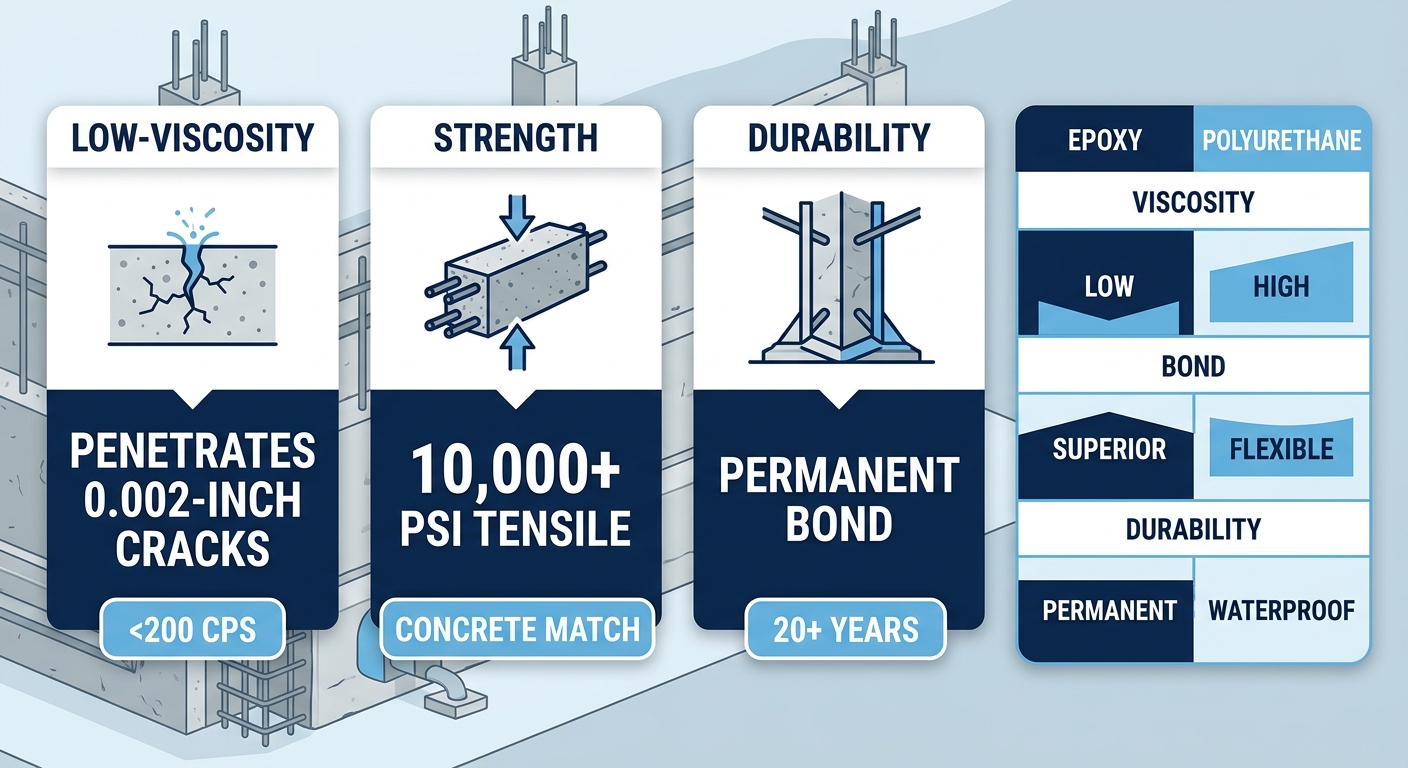

Benefits and comparison of structural injection epoxy for durable repairs

This infographic illustrates how epoxy outperforms alternatives in structural applications, guiding contractors toward informed material choices for reliable repairs.

Advantages of Low-Viscosity Formulas

Low-viscosity formulas in structural injection epoxy, such as TxDOT Type IX resin, enable superior penetration into hairline cracks. According to authoritative Texas Department of Transportation (TxDOT) state guidelines for highway crack repair standards, viscosities under 200 cps allow injection into cracks as narrow as 0.002 inches at pressures of 20-100 psi. This ensures complete filling, reducing voids and maximizing contact with crack faces.

Key benefits include:

• Enhanced wetting of crack surfaces for optimal adhesion.
• Minimized risk of incomplete fills in tight fissures narrower than 0.005 inches.
• Efficient flow through debris-clogged paths with proper port spacing.

These properties make low-viscosity injection epoxy essential for precise concrete crack repair.

Strength and Durability Gains

Structural injection epoxy restores compressive strength exceeding 10,000 psi, with a modulus of elasticity matching concrete at 3-5 million psi. Texas Department of Transportation (TxDOT) guidelines highlight its resistance to creep and fatigue, ensuring performance over 20+ years in demanding environments like highway pavements.

Benefits encompass:

1. Tensile restoration to 100-150% of pre-crack levels.
2. Rigid bonding that transfers loads effectively across repairs.
3. Long-term stability against environmental stresses.

At Helical Technology, our high-strength structural epoxy supports contractors in achieving engineered outcomes that exceed original specifications.

In addition to penetration and strength, epoxy crack injection offers distinct advantages for foundation walls. Transitioning to practical applications reveals further efficiencies.

Epoxy Crack Injection Advantages

Epoxy crack injection excels for foundation walls with minimal shrinkage under 1%, eliminating the need for water-stops required in polyurethane methods. It supports vertical and horizontal injection, unlike gravity filling, and delivers 20-30% labor cost savings through streamlined port installation and pressure control.

Advantages over alternatives include:

• Seamless integration into existing structures.
• No expansion risks that could damage surrounding concrete.
• Proven efficacy in TxDOT-tested scenarios for structural voids.

These factors position epoxy crack injection as the preferred choice for static, load-bearing repairs.

Epoxy vs Polyurethane Comparison

Epoxy’s low viscosity and bond strength make it superior for tight, static cracks, per TxDOT standards, while polyurethane suits dynamic leaks. Thus, epoxy excels for static structural repairs, setting up application methods next.

How Structural Injection Epoxy Works

At Helical Technology, we supply structural injection epoxy solutions essential for restoring integrity to cracked concrete foundations and structures. Building on prior discussions of crack types, this epoxy penetrates fine fissures to create monolithic bonds, preventing water infiltration and further deterioration. Our foundation repair solutions leverage these advanced materials for durable results nationwide.

Application Process for Concrete Cracks

The application of epoxy crack injection follows a precise sequence to ensure complete crack filling. According to authoritative guidelines from the Texas Department of Transportation (TxDOT), begin by cleaning the crack with a wire brush and compressed air to remove debris. Next, install injection ports at 6-8 inch intervals along the crack. Seal the crack surfaces with epoxy paste over the ports, allowing it to cure. Inject low-viscosity epoxy starting from the lowest port using 20-50 psi pressure. Continue until refusal at each port, moving upward sequentially. Finally, remove ports and finish the surface by grinding excess material smooth.

Benefits and comparison of structural injection epoxy for durable repairs

Step-by-step TXDOT epoxy injection process for foundation crack repair

These steps, drawn from TxDOT standards, guarantee concrete crack repair effectiveness even in challenging environments.

Mechanism of Epoxy Crack Injection

Once injected, structural injection epoxy works through low viscosity that penetrates cracks as narrow as 0.002 inches, as noted in TxDOT protocols. The two-part resin mixes during injection, triggering a chemical reaction that hardens in 24-48 hours, achieving bond strengths exceeding 10,000 psi. Pressure dynamics, typically 25-40 psi, force the epoxy into voids and micro-cracks for full contact adhesion, expanding slightly to lock in place. This process restores structural continuity, bridging separated concrete faces seamlessly.

Best Methods for Foundation Repairs

Optimal techniques vary by crack characteristics. For vertical dormant cracks under 0.010 inches in foundation walls, gravity feed suffices, allowing epoxy to flow downward naturally. Active horizontal cracks over 0.020 inches require pressure epoxy injection for structures to counteract movement. Deep foundation walls exceeding 12 inches thick benefit from port-and-packer systems, spacing ports per TxDOT at intervals not exceeding crack depth. We advise these methods based on site assessments to maximize adhesion and longevity.

Product Examples like SET-3G Epoxy

Products like set 3g high strength epoxy adhesive exemplify performance in pressure crack epoxy filling. It delivers 21,000 psi tensile strength, with a 5-minute gel time and full cure in 24 hours at 75°F, ideal for saturated concrete. TxDOT-approved equivalents meet ASTM C 881 standards, supporting concrete crack repair in demanding applications. These high-strength adhesives enable reliable repairs, as used in our ICC and ISO Certified products lineup.

Explore our full range of crack repair products next to discover benefits and installation support from Helical Technology’s engineering team in Littleton, CO.

Best Practices for Structural Injection Epoxy Application

At Helical Technology, we recommend structural injection epoxy as a proven method for restoring concrete integrity, building on material selection from prior sections. This approach addresses active cracks in load-bearing elements while adhering to authoritative guidelines. Proper application ensures long-term durability and safety in foundation repairs.

Handling Damp or Wet Surfaces

Moisture-tolerant structural injection epoxy excels in damp conditions common to foundation cracks, per Texas Department of Transportation (TxDOT) guidelines for bridge repairs.

• Select low-viscosity, moisture-tolerant epoxies like TxDOT Type IX that penetrate wet cracks up to 1/16 inch wide.
• Prepare surfaces by removing loose debris and contaminants without drying, using compressed air or brushes.
• Install injection ports spaced 6-8 inches apart as specified by TxDOT, sealing with surface epoxy adhesive.
• Inject at low pressure to avoid washout, monitoring flow until refusal.

These practices, drawn from TxDOT’s authoritative state transportation guidelines, minimize delays in wet environments.

Curing Times for Load-Bearing Repairs

Curing times for structural injection epoxy in load-bearing repairs vary with temperature, demanding strict protocols to prevent failure.

• Expect gel time of 20-45 minutes; full cure takes 24-72 hours above 50°F for optimal strength.
• Verify cure with probe tests before loading, as mandated by TxDOT quality control.
• WARNING: Barricade areas and prohibit traffic until full hardness confirmed.
• Maintain temperatures above 50°F during cure using enclosures if needed.

Following TxDOT procedures ensures safe restoration of structural capacity. We advise monitoring for our certified installers.

Cost Considerations and Suitability

Concrete crack repair with epoxy injection balances cost and performance for walls and beams.

• Budget $10-20 per linear foot for walls, $15-30 for structural beams, covering materials and labor.
• Ideal for cracks 0.002-0.25 inches wide in concrete, per TxDOT specifications.
• Prefer over gravity filling for pressurized, deep structural fixes.
• Factor in port installation and surface sealing for total project economics.

TxDOT guidelines affirm suitability for durable, cost-effective repairs in infrastructure. Evaluate based on crack width and load.

DIY vs Professional and Crack Stitch Integration

Professionals handle complex epoxy crack injection, especially with live loads or depths over 4 inches.

• Opt for DIY only on shallow, non-structural cracks under 4 inches.
• Hire pros for $500-2000 per repair, ensuring TxDOT-compliant execution.
• Integrate by drilling 45-degree holes adjacent to injected cracks and installing crack stitch anchors for tensile reinforcement.
• Combine methods for hybrid repairs in high-stress zones.

We at Helical Technology support pros with training; see case studies for advanced applications.

Optimizing Foundation Repairs with Epoxy Injection

Once cracks are identified, structural injection epoxy offers an optimal repair solution for concrete foundations. This minimally invasive method seals fissures effectively, restoring structural integrity without extensive demolition. At Helical Technology, we supply high-quality epoxy products that contractors rely on for durable results.

The pressure injection process follows authoritative guidelines from the Texas Department of Transportation (TxDOT). Install injection ports spaced 6-8 inches apart along the crack. Seal the surface with TxDOT Type V or VII epoxy adhesive. Then, inject low-viscosity epoxy, such as Type IX resin, at 20-100 psi to fill cracks wider than 0.002 inches. Use vacuum grouting for complete saturation:

• Mix two-part epoxy automatically during pumping.
• Start at lowest port, progressing upward.
• Cap ports to prevent leakage.

This epoxy crack injection ensures thorough penetration even in narrow fissures.

Epoxy’s high tensile strength up to 12,000 psi, moisture tolerance, and chemical resistance provide long-term durability. Equipment includes pumps and nozzles for precise application. Benefits include faster cure times of 1-4 hours and cost savings over full replacement, ideal for vertical or horizontal cracks in basement walls. Concrete crack repair via this method minimizes downtime.

Verify success with post-injection bond strength tests and crack saturation checks before port removal. Epoxy injection pairs well with Basement Wall Repair Anchors for comprehensive stabilization. For severe bowing, combine with basement wall repair anchors.
