Essential Guide to Building Foundation Reinforcement

Once foundation issues are identified, building foundation reinforcement is key to preventing further settlement and structural damage. We at Helical Technology define this process as strengthening weakened foundations using piers for long-term stability. Our foundation repair solutions support contractors nationwide.

Texas Real Estate Commission guidelines mandate reporting visible signs of adverse performance, signaling the need for reinforcement:

• Cracks in walls or slabs over 1/4 inch
• Out-of-level floors
• Doors or windows that bind or stick
• Chimney separation from the structure

Helical piers, screw-like piles twisted into the soil, offer immediate load support. Push piers, by contrast, are hydraulically driven deeper for stabilization.

Reliable House Stabilization Equipment ensures precise pier installation. Always consult professionals and our network of structural engineers for site-specific guidance, complying with building codes. Detailed installation of helical piers follows in the next guide.

Identifying Signs of Foundation Problems

Beyond understanding foundation basics, knowing the warning signs is crucial for timely building foundation reinforcement. We at Helical Technology emphasize early detection of visible issues like cracks and shifts to prevent costly damage.

According to the Texas Real Estate Commission (TREC) standards, inspectors must report present and visible indications of adverse foundation performance. Common signs include:

• Cracks in interior drywall wider than 1/8 inch: These often result from foundation settlement, as the structure pulls away from walls.
• Diagonal cracks in exterior brick mortar: They indicate differential settling where one side drops faster than the other.
• Doors or windows that stick or won’t close properly: Misalignment from shifting foundations causes binding in frames.
• Sloping or uneven floors: Foundation movement leads to noticeable tilts detectable by sight or marble tests.
• Gaps around window or door frames: Separation occurs as the foundation settles unevenly beneath openings.
• Water pooling near the foundation: Poor drainage exacerbates soil erosion and settlement around the base.

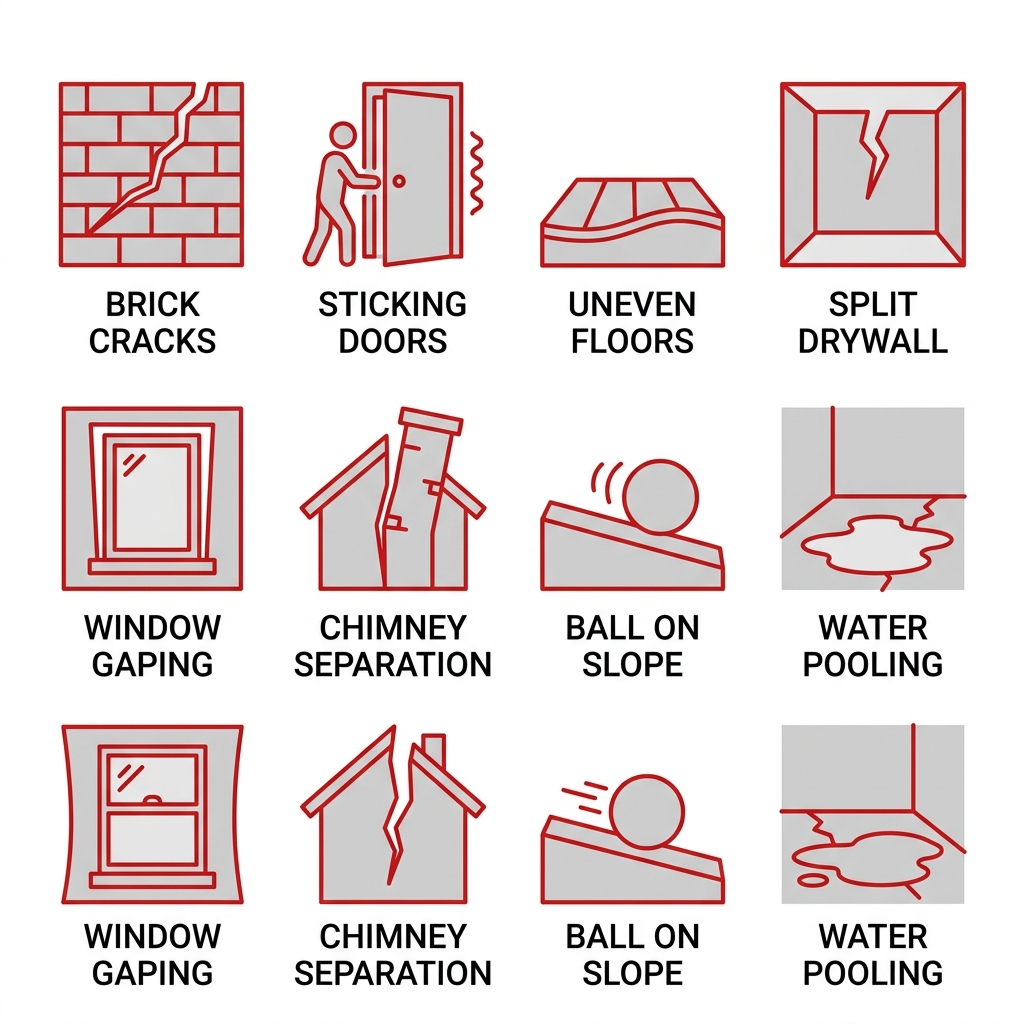

Icons depicting key indicators of foundation issues

Spotting these signs early enables effective interventions like helical piers or push piers, avoiding full replacement. If multiple appear, contact a reliable Structural Reinforcement Supplier for assessment to ensure proper building foundation reinforcement.

Conduct a Professional Foundation Inspection

Before pursuing repairs, perform this professional inspection protocol to diagnose needs for building foundation reinforcement. We at Helical Technology emphasize precise visual assessments aligned with regulatory standards.

Follow these steps:

• Scan exterior for cracks exceeding 1/32 inch in mortar joints of foundation walls or slabs, wall bulges, or chimney separation from the structure. For wall shifts, consider plate anchors to stabilize.
• Examine interior sheetrock for cracks wider than 1/8 inch vertically or 1/32 inch horizontally, misaligned door or window frames, and sloping floors via marble test, as mandated by the Texas Real Estate Commission (TREC) mandatory reporting requirements for real estate inspectors.
• Check heaving or settlement signs, including uneven brick mortar joints or gaps under baseboards.
• Document all visible performance deficiencies without speculating on causes, per TREC guidelines.

Identified issues often require targeted reinforce building foundations using helical piers for settlement or push piers as alternatives. Consult our engineering team for solutions.

Evaluate Soil Conditions and Loads

Once the site is surveyed, begin detailed soil and load evaluation. Poor soil conditions threaten building foundation reinforcement, causing settlement and structural failure in residential homes on clay soil.

Conduct these key assessments:

1. Use Standard Penetration Test (SPT) for bearing capacity, Cone Penetration Test (CPT) for profiling, and percolation tests for drainage.
2. Classify soils: expansive clays swell and shrink; loose sands lack density; rocky soils vary, risking helical piers or push piers stability.
3. Calculate loads: dead loads (100-150 psf slabs), live loads (40 psf floors, 20 psf roofs per ASCE 7), plus seismic and wind forces.

Poor soil (<2000 psf bearing capacity) or >1 inch settlement demands push piers for compression or helical piers for tension. We recommend geotechnical engineer reports. Contact a trusted structural reinforcement supplier for guidance. Consult our engineering team for code-compliant designs.

Select Appropriate Reinforcement Method

Based on your soil test results, choose the best approach for building foundation reinforcement. We prioritize three key criteria: soil composition, required structural load capacity, and site accessibility constraints.

• Soil composition: Helical piers excel in unstable or contaminated soils via screw-in installation that skips excavation.
• Load capacity: Assess needs against pier ratings for safe support.
• Accessibility: Evaluate overhead clearance and vibration sensitivity.

Helical piers suit urban retrofit projects with minimal disruption and immediate load transfer. In contrast, push piers work for dense soils using hydraulic pushing but limit use in low-overhead or sensitive areas. Follow this decision tree: if soil bearing <2000 psf or access <10ft, select helical piers; otherwise, evaluate push piers.

We recommend helical piers for 80% of residential cases due to low disruption. Consult our network of structural engineers for IBC-compliant load calculations.

Prepare Site for Installation

Once the site is evaluated for building foundation reinforcement, thorough preparation ensures safe and efficient installation of helical piers or push piers. In Denver, CO, these steps minimize risks and provide clear access for equipment.

1. Clear vegetation, debris, and obstacles from the installation area to allow equipment access.
2. Locate and mark underground utilities by calling 811 or local services before digging.
3. Ensure level ground with minimal grading, avoiding slopes greater than 5 degrees for precise pier placement.
4. Secure necessary permits and notify neighbors to comply with local regulations in Denver, CO.
5. Verify soil access points and staging areas for helical pile systems or resistance piers machinery.
6. Erect barriers and require PPE to prioritize safety during preparation.

Contact reliable concrete contractors denver co for expert site prep. With the site prepared, proceed to pier driving.

Install Helical Piers

To address these issues effectively, helical pier installation offers a proven fix for building foundation reinforcement. This process uses helical piers to stabilize structures quickly and precisely. We provide ICC-certified products and training for optimal results.

Follow these five steps:

1. Site preparation: Conduct soil boring tests to determine helical plate configuration. Excavate access holes at foundation crack locations.
2. Drive lead section: Mount a hydraulic torque motor on a skid-steer or excavator. Advance the lead helical pier until achieving target torque for load capacity.
3. Attach extensions: Couple galvanized steel shafts as needed to reach the required elevation.
4. Load testing: Perform a proof test, lifting the foundation 1/4 to 1/2 inch to verify capacity.
5. Final bracket installation: Secure the pier to the structure, ensuring compliance with building codes.

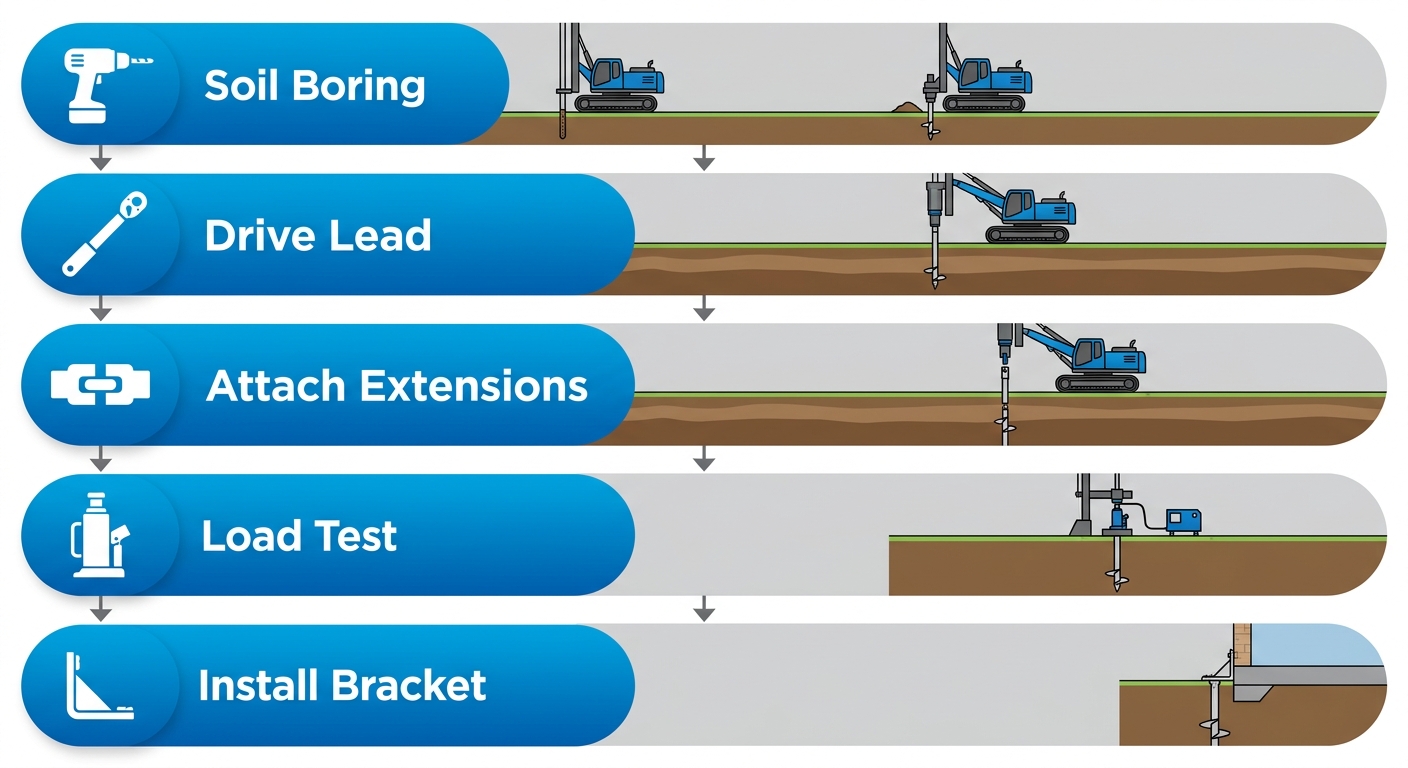

5-stage helical piers installation process flow diagram

Helical piers excel over push piers by installing without vibration or spoils. For concrete repair denver co, consult our engineering team. Consult a structural engineer for project-specific guidance.

Install Push Piers if Needed

If inspection confirms severe settling, install push piers as follows for building foundation reinforcement. Key indicators include differential settlement over 1 inch, wall cracks wider than 1/4 inch, or doors sticking due to foundation shift. Push piers, steel shafts hydraulically driven into stable soil, lift and stabilize structures.

We outline the process in four steps:

1. Excavate the site to expose the footing.
2. Attach a hydraulic ram to pier sections.
3. Drive piers to refusal on bedrock or firm soil.
4. Secure brackets and hydraulically lift to level the structure.

Benefits include minimal vibration, immediate load transfer, and over 10,000 PSF capacity per pier. Contact certified installers for permits, specialized equipment, and 6-12 months of post-install monitoring.

Test and Monitor Reinforcement

Following helical pier or push pier deployment in building foundation reinforcement, we verify stability through rigorous testing protocols. These steps confirm our foundation repair solutions perform as designed, preventing structural issues.

Load testing applies 2-3 times the design load to helical piers using hydraulic jacks. Measure deflection under 1/8 inch. Verify installation with torque correlation (500 ft-lbs per foot embedment) for helical piers and 1.5 times capacity resistance checks for push piers.

Install telltale extensometers to track settlement below 1/4 inch annually and tiltmeters for lateral movement under 1/2 degree. Schedule initial tests at 30 days post-install, quarterly in year one, then biannual.

Common Issues and Troubleshooting

Even sturdy foundations face issues over time. In Texas, visible signs of distress often indicate the need for building foundation reinforcement. Don’t panicu2014many issues are fixable with timely troubleshooting and solutions like foundation repair piers.

Per Texas Real Estate Commission guidelines, report these visible and present indications:

• Cracks in slabs wider than 1/4 inch: Horizontal or vertical fissures signaling potential settlement.
• Separation between walls and slabs exceeding 1/4 inch: Gaps showing differential movement.
• Heaving soil around foundation: Uplift from expansive clays.
• Chimney cracks: Misalignment or leaning due to foundation shifts.
• Sticking doors and windows: Binding from frame distortion.
• Sloping floors: Uneven surfaces indicating structural compromise.
• Wall cracks wider than 1/8 inch: Diagonal patterns suggesting shear stress.
• Brick mortar joint separations: Widening gaps in veneer.

Troubleshoot systematically: Conduct visual inspection, test for movement, assess contributing factors, and document evidence.

Achieving Long-Term Foundation Stability

While identifying issues is crucial, achieving long-term foundation stability demands targeted building foundation reinforcement solutions like helical piers. We at Helical Technology emphasize proactive strategies to counter soil movement and load changes.

Helical Piers screw into the ground via helical plates, providing immediate load transfer. For heavy loads in dense strata, push piers hydraulically drive to competent layers. Sustain stability through annual visual inspections of pier caps and monitoring. Consult our network of structural engineers for project-specific guidance.
