Understanding Earth Retention Systems

To address soil stability challenges in construction, earth retention systems are essential. These structures and methods hold back soil to prevent landslides or collapses in excavations, slopes, foundations, and retaining walls. At Helical Technology, we provide solutions that ensure safe, reliable performance for contractors nationwide.

Common methods include helical piles, screw-like anchors installed via torque for fast, high-capacity support in foundations and walls; sheet piles, interlocking steel sheets driven into the ground for water retention and permanent barriers; and soldier piles, drilled H-beams with lagging used in soldier pile walls for deep temporary excavations.

The following table offers an overview of these earth retention systems, highlighting trade-offs in primary use, load capacity, and installation speed to contextualize helical piles applications.

This comparison illustrates key differences, such as the rapid installation of helical piles versus the slower drilling of soldier piles. Contractors often weigh speed against permanence, with helical piles offering versatility for projects demanding immediate, high-load support. These insights, drawn from industry practices, help select optimal systems for specific site conditions.

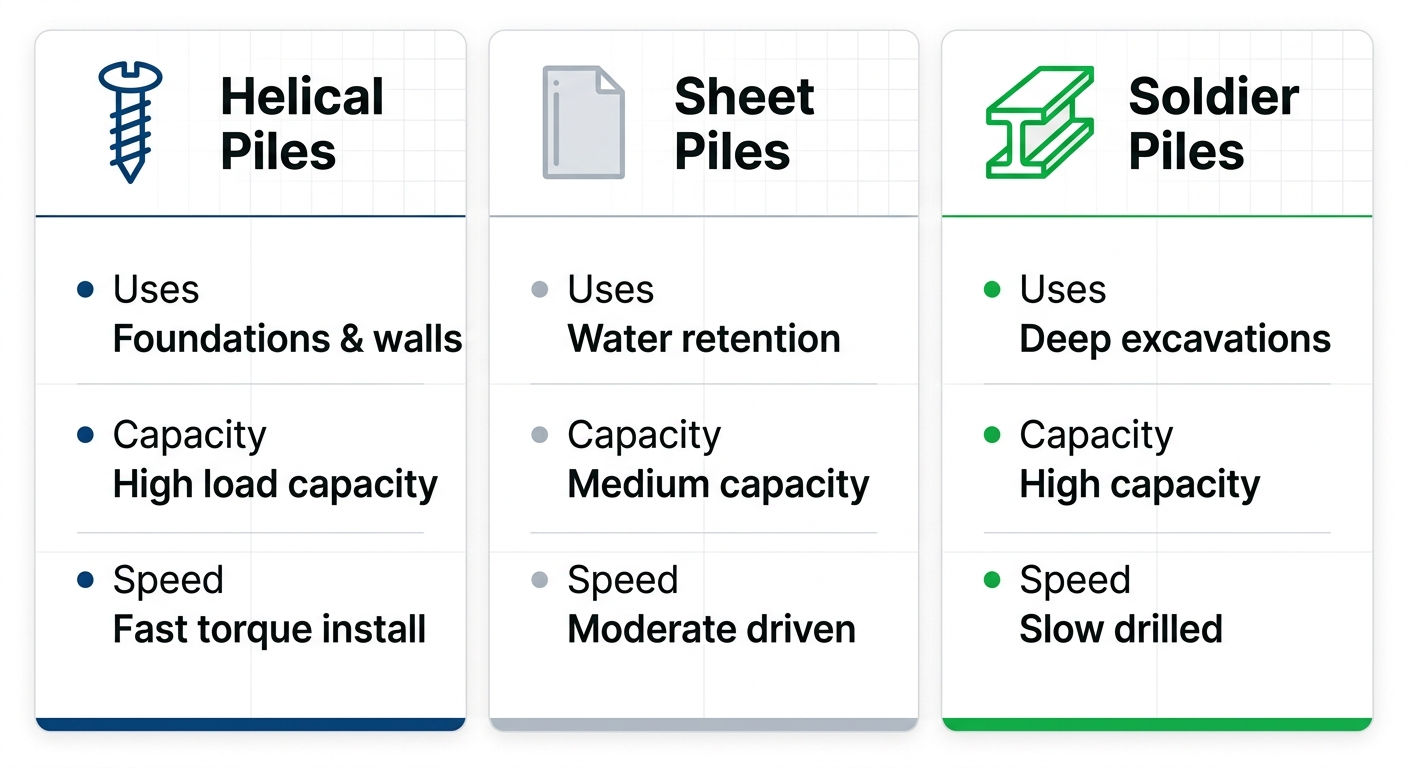

Comparison of common earth retention methods: Helical Piles, Sheet Piles, Soldier Piles

Among these options, helical piles stand out for their efficiency and load capacity, meeting modern earth retention needs. As detailed next, they provide advanced solutions for stable foundations.

Fundamentals of Earth Retention Systems

Building on essential geotechnical principles, earth retention systems are engineered structures designed to resist lateral earth pressures in excavations, slopes, or embankments. These systems prevent soil failure, ensuring stability for construction projects ranging from basements to highways. At Helical Technology, we recognize that effective earth retention systems must counter key forces such as active earth pressure from soil backfill, surcharge loads from surface equipment, seismic forces in high-risk areas, and hydrostatic water pressure that can exacerbate instability.

Key Principles of Earth Retention

Lateral earth support systems operate by balancing these forces through mass, structural reinforcement, or anchoring. Active earth pressure develops when soil tends to move away from the retaining structure, while proper design incorporates safety factors for dynamic loads. Understanding these fundamentals allows contractors to select appropriate solutions tailored to site conditions, optimizing both safety and cost efficiency.

Common Types of Retaining Walls

Gravity retaining walls rely on the self-weight of materials like concrete or stone to resist overturning, making them ideal for low heights of 3-5 feet at a cost of $20-50 per square foot. While simple and economical, they require substantial mass, limiting applications in space-constrained sites.

Cantilever retaining walls, constructed from reinforced concrete with a stem-and-base design, extend capabilities to 10-15 feet. The cantilever action transfers loads efficiently, though they demand precise engineering for medium-height scenarios at $30-60 per square foot.

For taller applications exceeding 20 feet, helical anchor walls using steel piles driven with torque offer superior performance. These modern earth retention systems, exemplified by solutions like the Advanced Earth Anchoring System, provide high-capacity support at $40-80 per square foot, ideal for challenging soils where traditional walls fall short.

Retaining Wall Types Comparison: Compare common retaining wall types used in earth retention.

Data from industry standards and Helical Technology catalog.

This table highlights how gravity walls suit low-height, budget-conscious projects, while cantilever and helical options scale for greater demands. Helical anchors stand out for their versatility in deep excavations, often outperforming others in load capacity and installation speed, helping contractors like our certified network meet tight schedules.

Advanced alternatives include tiebacks and soil nails, as detailed in an expert geotechnical comparison by Geoengineer.org. Tiebacks employ prestressed steel tendons grouted into drilled holes for active lateral support in temporary or permanent excavations, offering high capacities up to 200 kips. Soil nails, by contrast, provide passive reinforcement through overlapping grouted bars for slope stabilization, with lower loads under 40 kips but cost-effective for tolerant movements.

While basic retaining walls cover many needs, soldier pile walls introduce segmented support for complex scenarios. Always conduct site-specific geotechnical analysis. Consult our network of structural engineers or Helical Technology’s engineering team for project-specific design and installation guidance to ensure compliance with building codes and ICC-ES criteria.

Deep Dive into Helical Piles for Earth Retention

Building on foundational uses, helical piles excel in earth retention systems through specialized configurations that provide reliable stability for temporary and permanent structures. At Helical Technology, we supply these solutions for applications like retaining walls and soldier pile walls, ensuring contractors in Littleton, CO, and beyond achieve superior performance in challenging soil conditions.

Types of Helical Piles in Earth Retention

Helical piles for earth retention come in various configurations tailored to specific demands. Single-helix piles feature one helical plate, ideal for moderate loads in soldier pile walls where direct embedment supports vertical and lateral forces. Double-helix designs add a second plate for enhanced capacity, commonly used in cantilever retaining walls to resist overturning moments from soil pressure.

Multi-helix piles incorporate three or more plates, optimizing load distribution in high-pressure zones as part of an advanced earth anchoring system. These configurations allow precise adjustments during installation, accommodating variable soil layers while minimizing disturbance. In earth retention solutions, selecting the right helix count ensures efficient support for shoring systems and excavation walls, promoting long-term durability.

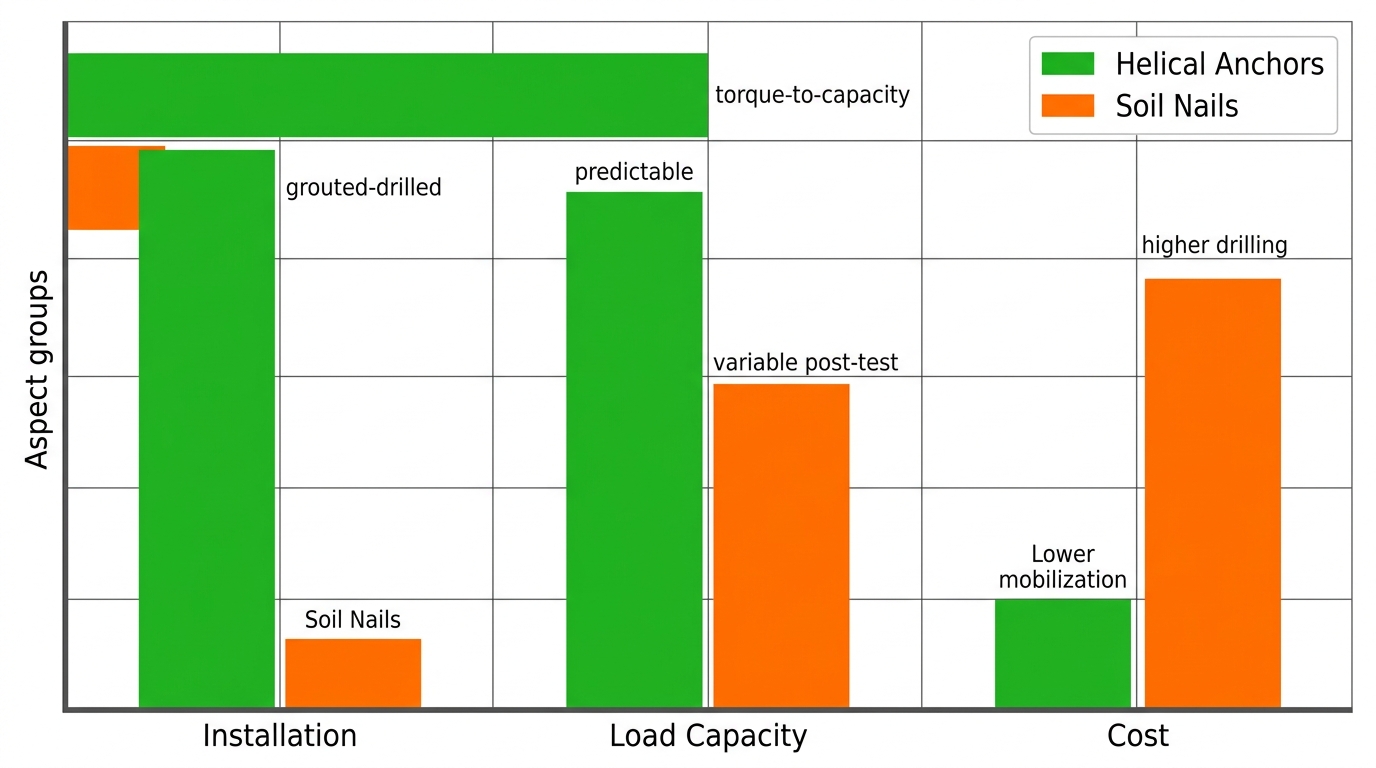

Helical Anchors vs. Soil Nails: installation, capacity, and cost comparison

This visual highlights key metrics, underscoring helical anchors’ edge in predictability and efficiency. As we examine mechanics next, these types form the backbone of robust wall retention systems.

Mechanics of Helical Tiebacks

Helical tiebacks operate through a torque-correlated installation process that directly correlates installation torque to ultimate capacity. We advance the lead helical pile with steady rotation and downward pressure until the target torque is achieved, ensuring embedment in stable strata.

Load transfer occurs primarily through bearing on the helical plates combined with skin friction along the shaft, providing immediate resistance without curing time. Key steps include:

• 1. Pre-drilling if obstructions exist.
• 2. Advancing the pile via hydraulic torque motor.
• 3. Monitoring torque for capacity verification.
• 4. Securing the tieback head to the facing wall.

Performance metrics demonstrate excellent pullout resistance, with capacities up to 200 kips or more per Geoengineer.org analysis. Long-term stability benefits from corrosion protection on our ICC-certified products. Ready to implement these reliable solutions? Buy Helical Tiebacks from Helical Technology today.

Beyond types and installation, these mechanics deliver clear advantages over traditional methods like soil nails. Understanding this performance positions helical piles as preferred for demanding earth retention projects.

Advantages Over Soil Nails

Helical anchors outperform soil nails in predictability and efficiency for earth retention systems. Unlike soil nails, which require post-installation testing due to variable grout-soil bonds, helical tiebacks achieve verifiable load capacity directly from installation torque, as noted in expert industry analysis from Geoengineer.org. This eliminates uncertainty, with tiebacks handling up to 200 kips compared to soil nails’ less than 40 kips.

Installation proves faster and less disruptive: helical methods avoid extensive drilling and grouting, enabling immediate loading. Mobilization costs drop significantly, bypassing heavy drilling rigs, while soil nails demand them, increasing expenses. Geoengineer.org benchmarks highlight tiebacks’ suitability for deep excavations near sensitive structures, reducing lateral movement through pre-loading.

Our ICC-ES documented products further enhance these benefits, offering engineering support for project-specific designs. These factors make helical tiebacks the go-to for efficient pile-supported retaining structures, cutting timelines and budgets without compromising safety.

The following table summarizes these differences, drawing from Geoengineer.org article and ICC-ES reports:

Supporting data from Geoengineer.org article and ICC-ES reports.

This comparison reinforces helical solutions’ superiority, aligning with our commitment to advanced earth anchoring systems at Helical Technology. Consult our structural engineering network for tailored applications in retaining walls and beyond.

Practical Applications of Earth Retention Systems

Applying earth retention systems in practice starts with understanding real-world installation techniques that ensure stability and safety. At Helical Technology, we supply ICC-certified helical products and provide engineering support to contractors implementing these solutions across Littleton, CO, and surrounding areas. These methods address diverse project needs, from permanent structures to short-term shoring, emphasizing vibration monitoring and surcharge load limits for worker safety.

Installation of Soldier Pile and Lagging

Soldier pile walls form a cornerstone of earth retention systems, ideal for excavations in cohesive or granular soils. Installation requires precise sequencing to minimize ground disturbance. We recommend engaging concrete contractors denver co for Denver-area projects involving lagging integration.

• Site preparation: Clear vegetation, survey excavation lines, and install temporary fencing. Conduct soil borings to determine pile spacing at 6-8 ft centers. Monitor groundwater and apply dewatering if needed.
• Pile installation: Drive or drill steel H-piles or helical piles to refusal or design depth using low-vibration methods. Torque monitoring ensures capacity; verify embedment exceeds 120% of wall height.
• Lagging placement: Insert timber or steel panels between flanges as excavation advances. Panels overlap 4-6 inches; secure with wedges. Safety protocols include surcharge limits below 2 ft during lagging.
• Bracing and tiebacks: Install rakers or walers if spans exceed 8 ft. Integrate helical tiebacks for active restraint, pre-loading to 80% capacity per Geoengineer.org engineering analysis.
• Backfill and monitoring: Compact granular backfill in lifts, installing inclinometers for deflection tracking. Vibration limits stay under 0.5 in/sec to protect adjacent structures.
• Final inspection: Load test piles and scan for voids. Our network of structural engineers reviews plans for code compliance.

These steps deliver reliable soldier pile walls, transitioning seamlessly to comparative evaluations.

The following table compares soldier pile and sheet pile walls based on key features:

Source: Contractor estimates, Helical Technology data.

Soldier piles offer cost advantages in cohesive soils, while sheet piles excel in watery conditions. This comparison, informed by industry data, guides selection for optimal performance.

Building Retaining Walls with Helicals

Building retaining walls with helicals integrates advanced earth anchoring systems for permanent applications. These walls suit sloped sites in Littleton, CO, combining helical piles with facing elements.

• Design embedment: Calculate depth using soil load data, targeting 10-15 ft minimum. Our real-time design software ensures accurate modeling.
• Helical pile installation: Advance piles to refusal with torque verification. Space at 8-10 ft centers, integrating with soldier piles for hybrid strength.
• Wall facing attachment: Bolt precast concrete panels or segmental blocks to pile caps. Ensure 4-inch overlap for shear transfer.
• Drainage integration: Install geocomposite drains behind facing, with gravel backfill. Limit surcharges to prevent hydraulic failure.
• Tieback augmentation: Add helical tiebacks per Geoengineer.org criteria for walls over 12 ft, pre-loading for minimal deflection.
• Backfill and compaction: Place in 12-inch lifts, monitoring settlement. Vibration controls protect utilities.

Retaining walls built this way provide enduring stability, leveraging our ICC and ISO certified products.

Temporary Earth Retention Scenarios

Temporary earth retention scenarios arise in utility excavations or construction shoring lasting under six months. Helical piles excel here due to rapid install and removal.

Use cases include trench shoring for pipelines or basements, where quick setup avoids delays. Advantages include no spoils, immediate loading, and reusability, outperforming driven piles in vibration-sensitive zones.

Load testing protocols involve quick torque checks post-install, targeting 150% factor of safety. Safety mandates include daily inspections and surcharge limits under 3 ft. For steep cuts, brace with helical rakers.

In urban Littleton projects, these systems minimize disruption. Consult our engineering team for project-specific guidance, ensuring compliance with ICC-ES AC358.

These applications highlight key differences, as shown in the comparison above, bridging to detailed cost analysis in subsequent sections.

Advanced Techniques in Earth Retention

While basic methods suffice for simple sites, advanced earth retention systems address complex soil conditions and deep excavations. At Helical Technology, we specialize in supplying ICC-certified products like advanced earth anchoring systems for these demanding geotechnical projects. These techniques, including tiebacks, soil nails, helical piers, retaining walls, and soldier pile walls, provide robust lateral support with minimal disruption.

Tiebacks are prestressed tendons grouted into drilled holes, offering temporary or permanent lateral support with minimal excavation and high load capacity. According to Geoengineer.org geotechnical engineering expert analysis, helical tieback anchors handle up to 200 kips, ideal for urban deep cuts near sensitive structures. In contrast, soil nails are passive steel bars grouted into drilled holes, reinforcing soil masses cost-effectively for permanent walls and faster installation than tiebacks. Geoengineer.org notes soil nails mobilize resistance as soil moves, suiting slopes with tolerable movement.

Helical piers, or screw piles, deliver deep foundation support in unstable soils through vibration-free installation, a key advantage for foundation repair solutions. We provide these ICC and ISO Certified products with engineering support from our network of structural engineers. Soldier pile walls embed steel H-piles with lagging for deep excavations, perfect in urban settings adjacent to structures. Traditional retaining walls offer reliable soil retention systems but may require more space than advanced options.

The following table outlines Cost Comparison: Earth Retention Systems, showing US average costs for helical-based systems (market data):

Helical piers command a premium due to soil conditions and depth demands, while retaining walls vary by height and material. These factors, plus project scale, guide selection for optimal performance and budget.

In challenging terrains, advanced systems minimize failures, reducing long-term needs like concrete repair denver co. Consult our engineering team for site-specific guidance; installations must comply with building codes. This positions us for real-world applications and local expertise in Littleton, CO.

Frequently Asked Questions on Earth Retention

To address common concerns about earth retention systems in construction projects, we have compiled these key FAQs for quick reference.

What are earth retention systems?

Earth retention systems are engineered structures that prevent soil movement and erosion on sloped sites. Examples include retaining walls for stable barriers and soldier pile walls for excavation support, ensuring site safety and stability.

How do retaining walls differ from soldier pile walls?

Retaining walls provide rigid support for low-to-medium height soil retention, ideal for landscapes. In contrast, soldier pile walls offer flexible, temporary shoring for deeper excavations in urban construction sites using steel H-piles and wood lagging.

How are soldier pile walls installed?

Soldier pile walls involve driving steel piles into the ground at intervals, then inserting lagging boards between them. This method suits temporary shoring on construction sites, providing immediate earth-retaining solutions during digging.

What benefits do helical piles offer in earth retention?

Integrating helical piles into earth retention systems enhances load-bearing capacity in poor soils. Our ICC-certified advanced earth anchoring systems deliver reliable foundation repair solutions with engineering support from our network of structural engineers.

What common issues affect earth retention systems?

Proper drainage prevents water buildup behind retaining walls or soldier pile walls, avoiding failures. Always consult a structural engineer or our team at Helical Technology for site-specific designs compliant with building codes.

For custom earth retention solutions, reach out to our experts in Littleton, CO.

Key Takeaways for Earth Retention Projects

In summary, earth retention systems like tiebacks and soil nails offer distinct advantages for retaining walls and soldier pile walls, per Geoengineer.org expert geotechnical comparison analysis.

• Tiebacks: Active prestressed anchors drilled and grouted with tendons, ideal for temporary or permanent use in granular soils.
• Soil nails: Passive steel bars grouted into holes, installed top-down without prestressing, suited for cohesive soils and temporary excavations.
• Load transfer: Tiebacks provide immediate lateral resistance via prestress; soil nails rely on soil interaction for passive resistance.
• Installation: Tiebacks need drilling, tendon placement, grouting, stressing; soil nails simpler with drilling, bar insertion, grouting.
• Cost: Soil nails typically 20-40% cheaper, lacking prestressing equipment.
• Selection: Tiebacks for permanent structures or soft soils; soil nails for rapid temporary shoring in competent ground.

These choices impact project efficiency, cost, and stability in earth retention applications.
