Ground Screw Piles Overview

Ground screw piles represent an innovative foundation solution that we at Helical Technology distribute to contractors nationwide. These steel shafts with helical plates are screwed directly into the ground using torque, bypassing concrete and excavation needs. Also known as Helical Piles, they provide advanced earth anchoring systems for diverse projects.

Installation begins with torque-driven rotation that advances the screw pile into the soil, achieving immediate load-bearing capacity based on the torque applied. This process suits various soil types without generating spoil or vibrations, unlike driven piles. We offer ICC and ISO certified products with engineering support to ensure precise deployment. Installations are rapidly deployable on constrained sites, reduce mobilization time, and integrate with engineered load calculations for safe, consistent performance.

Key advantages include faster setup in hours versus days for traditional methods, removability for reusability, minimal site disturbance, and cost-effectiveness for temporary structures. Common applications span solar farms, residential decks, commercial buildings, and wind turbines.

Ground screw piles differ from driven piles by eliminating vibration and spoil while enabling instant loading. Explore our foundation repair solutions for detailed benefits and installation guidance in subsequent sections.

Understanding Ground Screw Piles

Ground screw piles, also called helical piles or screw piles, consist of steel shafts with helical plates that twist into the ground to deliver stable foundation support without concrete. At Helical Technology, we distribute these advanced earth anchoring systems as ICC-certified solutions for reliable performance. This design enables quick installation in diverse soil conditions.

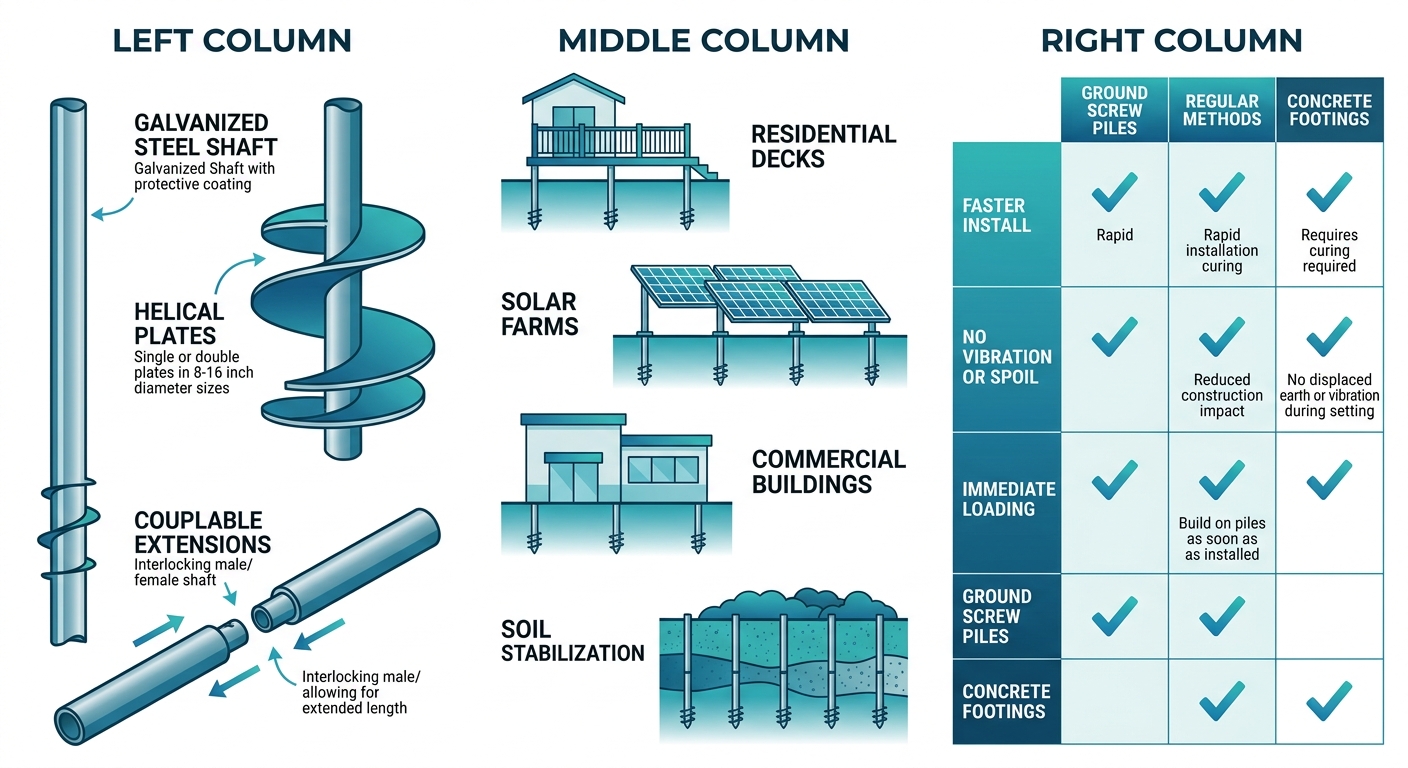

Infographic on ground screw piles design, uses, and comparison to concrete footings

As the infographic illustrates, ground screw piles offer versatile components tailored for demanding projects. These systems provide foundation repair solutions that our network of structural engineers supports with project-specific design.

Components and Design

Ground screw piles feature a robust central shaft made from high-strength galvanized steel, either a tube or solid square bar measuring 1.5 to 3 inches in diameter. This shaft supports the load while helical piles integrate welded steel plates known as helices. These 8- to 16-inch diameter plates, pitched at 45 degrees, cut into soil for optimal penetration and bearing capacity.

Key components include:

• Helices: Multiple plates spaced along the shaft to distribute loads and achieve refusal depth, the point of maximum soil resistance.
• Central shaft: Corrosion-resistant steel ensuring longevity in harsh environments.
• Extensions: Couplable sections, 3 to 10 feet long, added sequentially to reach stable strata.

These elements combine for customizable ground screw pile systems that meet ICC-ES criteria. We provide engineering excellence to ensure precise configurations.

Applications in Construction and Repair

Building on this design, ground screw piles excel in residential, commercial, and stabilization projects. In homes, they support deck foundations, modular structures, and solar panel mounts without disrupting landscapes.

Common uses encompass:

• Residential: Decks, additions, and elevated floors in expansive areas like Littleton, CO.
• Commercial: Warehouse platforms, bridge repairs, and temporary structures for rapid deployment.
• Soil stabilization: Slopes, retaining walls, and erosion control in weak or contaminated soils.

Our ICC and ISO Certified products enable contractors to address these needs efficiently. Consult our engineering team for site-specific guidance to comply with building codes.

Comparison to Traditional Foundations

Ground screw piles outperform driven piles and concrete footings in speed and versatility. Unlike driven piles, they require no pre-drilling, produce minimal vibration, and allow crews to install 10 to 20 units daily.

Key differences:

• Vs. driven piles: Torque-based installation avoids hammering noise and soil displacement.
• Vs. concrete footings: No curing time for immediate loading, fully removable, and ideal for poor soils without excavation.

These advantages suit contaminated sites and tight schedules. Products must align with ICC-ES AC358 criteria. This speed and ease lead to efficient installation processes explored next.

Benefits of Ground Screw Piles

Ground screw piles offer superior advantages in speed, durability, and cost savings compared to traditional concrete foundations. At Helical Technology, we distribute these innovative systems that install rapidly, last for decades, and reduce long-term expenses for contractors. These benefits make them ideal for projects ranging from residential decks to commercial solar farms.

Speed and Efficiency Advantages

Ground screw piles provide unmatched speed and efficiency in foundation installation. Using hydraulic equipment, we can drive piles into the ground in hours, bypassing the days or weeks required for concrete pouring and curing. This approach eliminates weather delays and minimizes site disruption, allowing projects to progress swiftly.

For instance, helical piles enable residential deck foundations to be completed in a single day, compared to traditional methods that halt work during curing. Industry standards indicate installation is 70% faster, reducing labor costs and enabling quicker occupancy or operation. Contractors appreciate this streamlined process, especially in tight schedules.

These efficiency gains position ground screw piles as a game-changer for time-sensitive builds, ensuring reliable timelines without compromising stability.

Beyond speed, ground screw piles excel in durability and longevity, offering long-term performance that traditional options cannot match.

Durability and Longevity

Durability and longevity define the core strength of ground screw piles. Constructed from galvanized steel, these screw piles resist corrosion for over 50 years, even in challenging soils where concrete often cracks and settles under heavy loads.

As an advanced earth anchoring system, they provide exceptional load-bearing capacity without ongoing adjustments. Unlike concrete, which deteriorates from freeze-thaw cycles, ground screw piles maintain integrity across varied conditions, supporting structures like solar farms with zero settling over decades.

We supply ICC-certified products that undergo rigorous testing, ensuring contractors deliver foundations built to last. This reliability translates to fewer repairs and sustained structural safety.

These advantages translate to significant cost savings over time, making ground screw piles a smart investment for forward-thinking projects.

Cost Savings Over Time

Ground screw piles deliver compelling cost savings throughout their lifecycle. Initial installation costs 20-50% lower than concrete due to no excavation, forming, or curing requirements, freeing up budgets for other project elements.

Maintenance is minimal, with no cracking repairs or reinforcements needed, unlike traditional foundations prone to environmental damage. At end-of-life, removal is simple and inexpensive, avoiding demolition expenses associated with concrete.

Real-world applications, such as commercial solar installations, demonstrate these savings through reduced downtime and extended service life. Our engineering support helps optimize designs for maximum value.

In summary, the benefits of ground screw piles make them the superior choice for durable, efficient foundations. Contact our team at Helical Technology for expert guidance on your next project.

How Ground Screw Piles Work

Building on their advantages in speed and minimal disruption, ground screw piles operate through a precise, torque-driven mechanism. These helical piles screw directly into the soil without generating spoils, providing stable foundations for various structures. At Helical Technology, we distribute ICC-approved ground screw pile systems that ensure reliable performance across residential and commercial projects.

Installation Process Step-by-Step

The installation of screw piles begins with thorough site preparation to accommodate hydraulic equipment. Contractors mark precise pile locations based on engineering plans, ensuring vertical alignment for optimal load transfer.

1. Site preparation and marking: Clear the area and stake out pile positions using survey data.
2. Align lead section: Position the initial helical pile section vertically with a torque head attachment.
3. Apply rotational torque: Use hydraulic machinery to screw the pile into the ground continuously until reaching target torque or depth refusal.
4. Couple extensions: Add sectional extensions as the pile advances, maintaining alignment.
5. Torque verification: Confirm final torque before any grouting, if specified by design.

This process typically completes in hours per pile, minimizing site impact.

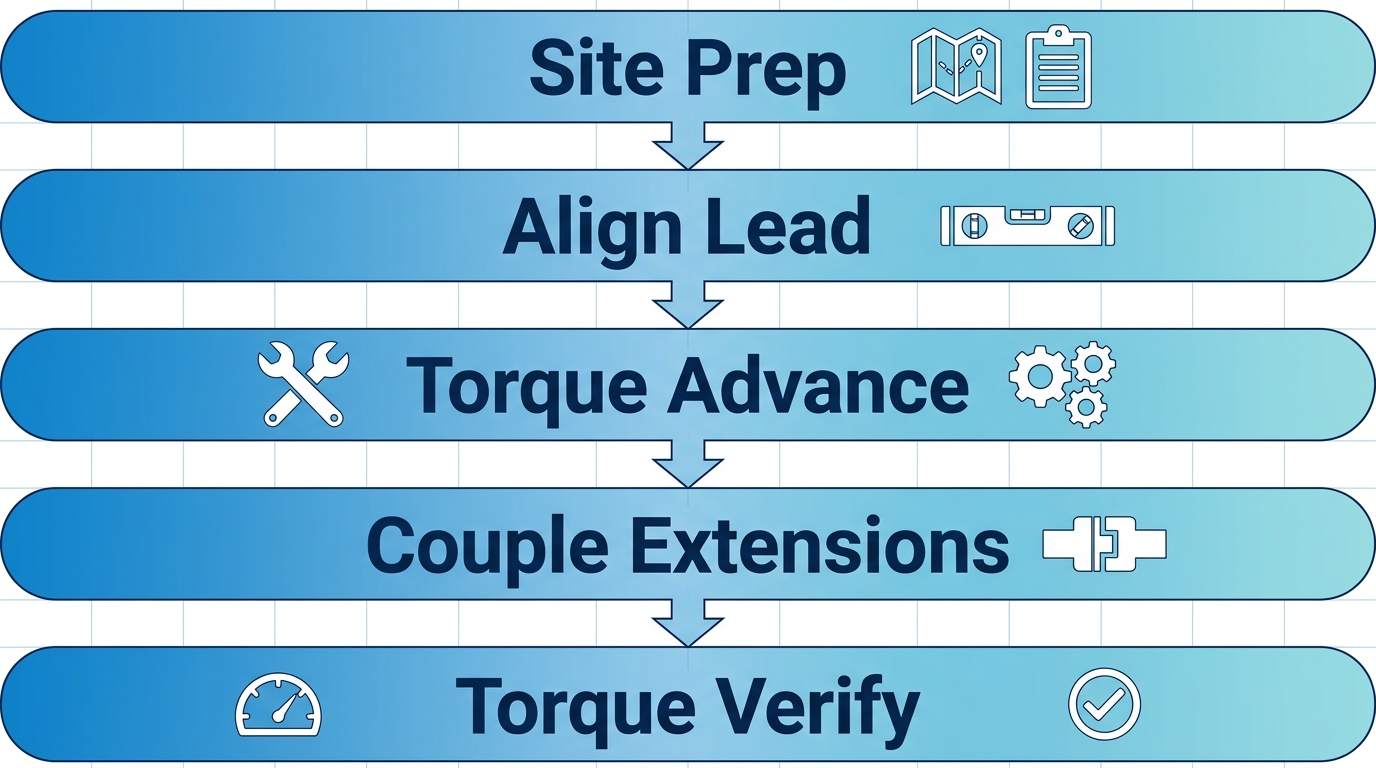

5-step ground screw piles installation process diagram

Once installed, these foundations integrate seamlessly with superstructures, supporting immediate loading in many cases.

Load Transfer Mechanics

Load transfer in ground screw piles primarily relies on the helical plates, or helixes, which bear against the soil. Under compression, the helixes compress soil downward, creating resistance, while in uplift, they engage soil upward for tension capacity. Secondary support comes from friction along the cylindrical shaft.

We liken this to helical anchors, where helix bearing dominates, supplemented by shaft friction in cohesive soils. Force diagrams illustrate downward compression via helix thrust and frictional drag along the shaft, ensuring even distribution to stable strata. This dual mechanism provides high capacity in varied soil conditions.

Helical piles excel in load distribution, preventing differential settlement common in traditional methods.

Testing and Verification

Verification confirms screw pile foundations meet design capacities through torque correlation and load testing. During installation, dynamic monitoring tracks torque, which correlates directly to ultimate capacity per International Code Council (ICC) authoritative building code standards.

For instance, installation torque divided by 10 approximates allowable compression load, with specific multipliers like 1 ft-lb/in equaling 1 kip. Post-installation, static load tests apply incremental loads using hydraulic jacks and dial gauges to measure settlement, ensuring deflections stay within code limits.

Our engineering support at Helical Technology guides contractors on these ICC-ES compliant methods, including proof tests for critical applications. This rigorous verification upholds safety and performance, paving the way for diverse uses explored next.

Best Practices for Ground Screw Piles

Building on the benefits of ground screw piles, proper implementation starts with meticulous planning and execution to achieve stable, code-compliant foundations. At Helical Technology, we emphasize advanced earth anchoring systems that deliver foundation repair solutions tailored for contractors nationwide. Integrating ground screw piles effectively requires adherence to industry standards, ensuring longevity and safety in diverse soil conditions.

Site Assessment and Preparation

Thorough site assessment forms the foundation for successful ground screw pile installations, identifying soil properties critical for load-bearing capacity.

• Conduct soil testing using Standard Penetration Test (SPT) or Cone Penetration Test (CPT) to determine bearing capacity and soil classification.
• Obtain a geotechnical report detailing groundwater levels, frost depth, and potential seismic risks to inform pile design.
• Clear the site by removing organic material to at least 12 inches below grade, ensuring a stable base free of debris.
• Verify site slopes and drainage patterns to prevent water accumulation around piles.

Safety Tip: Always consult a structural engineer for project-specific guidance, as required by ICC and ISO certified products standards.

Installation Techniques

Precise installation techniques guarantee that screw piles perform as engineered, with real-time verification preventing future settlement issues.

• Employ hydraulic torque drivers equipped with real-time torque monitoring, calibrated to manufacturer specifications for accuracy.
• Install to refusal or a minimum embedment of 10 feet, verifying torque at 120% of design capacity per International Code Council (ICC) building code standards.
• Monitor rotation during advancement to confirm torque-to-rotation ratios align with performance criteria.
• Perform post-installation load testing according to ASTM D1143 to validate capacity before loading structures.

Safety Tip: Verify all equipment calibration daily to avoid under-installation hazards that could compromise structural integrity.

Sourcing Quality Products

Selecting high-quality ground screw piles from reliable suppliers ensures compliance and durability, minimizing long-term repair costs for helical pile systems.

• Choose suppliers offering ICC-ES certified piles with galvanized coatings per ASTM A123 for corrosion resistance.
• Review material certificates and third-party testing reports to confirm load ratings and manufacturing standards.
• Consider cost ranges of $50-150 per pile, factoring in diameter, length, and quantity for budget planning.
• Opt for bulk purchasing options like Purchase Bulk Screw Piles from certified suppliers to achieve cost savings and reliable delivery.

Safety Tip: Demand full documentation on ICC and ISO Certified products to comply with building codes and avoid substandard materials.

Following these practices ensures longevity of screw piles in challenging soils, leading into maintenance strategies for sustained performance. Products must comply with applicable building codes and ICC-ES acceptance criteria (AC358).

Optimizing Ground Screw Piles Success

With ground screw piles properly selected, we at Helical Technology emphasize optimization to ensure long-term structural integrity. Proper strategies can reduce failure rates by up to 30% through precise soil matching and torque control, delivering reliable foundations for demanding projects.

To maximize success:

• Conduct soil geotechnical assessment: Perform Standard Penetration Test (SPT) at 1.5m intervals and Cone Penetration Test (CPT) for layered soils before placement.
• Follow installation protocols: Monitor torque to 2000-5000 ft-lbs per pile based on diameter; ensure 90-degree alignment using laser levels.
• Optimize load distribution: Space helical plates at 1.5x shaft diameter with varying pitches for uplift and compression resistance in helical piles.
• Prevent corrosion: Apply hot-dip galvanization per ASTM A123 standards and cathodic protection in aggressive soils for screw piles.
• Monitor post-installation: Deploy tiltmeters and strain gauges quarterly in the first year to verify settlement under 10mm.
• Integrate effectively: Pair with rigid caps for load transfer in seismic zones per IBC 2021 guidelines, incorporating commercial structural anchors for robust building solutions.

Consult our structural engineers for site-specific advice and code compliance. Optimized ground screw piles excel in demanding scenarios like commercial infrastructure.
