Retaining Wall Anchors: Stabilizing Foundations Effectively

Retaining walls demand robust stability against lateral earth pressures to prevent failure. Retaining wall anchors are tensioned structural elements that provide this lateral resistance. They transfer loads from the wall to stable soil or rock strata deeper underground. We at Helical Technology supply these advanced earth anchoring systems for reliable foundation repair solutions for residential and commercial use.

These ground anchors retaining wall applications resist overturning forces, sliding, and bulging. Common uses include basements, bridge abutments, and embankments. Anchors ensure long-term structural integrity in challenging conditions.

Key types offer versatile options:

• Helical tieback anchors: Screw piles install without grout, ideal for quick deployment.
• Plate Anchors: Provide high-capacity resistance via embedded plates.

Benefits include rapid installation, minimal site disturbance, high load capacity, and adaptability to variable soils. Per authoritative guidelines from ADSC-IAFD, design incorporates load testing and corrosion protection.

In modern foundation engineering, retaining wall anchors deliver enduring stability. ICC and ISO Certified products from our catalog support contractors nationwide. Next, explore installation techniques and case studies for optimal results. Consult our network of structural engineers for project-specific guidance.

Fundamentals of Retaining Wall Anchors

Retaining walls often face stability challenges from soil pressure and erosion, making retaining wall anchors essential for reinforcement. At Helical Technology, we supply advanced earth anchoring systems like helical tiebacks and plate anchors to stabilize failing structures effectively. These solutions provide immediate load transfer with minimal disruption, aligning with industry standards for safe earth retention (ADSC-IAFD standards).

Types of Retaining Wall Anchors

Retaining wall anchors come in several types designed for various soil conditions and load demands. Here are the primary options:

• Helical tiebacks: These screw-pile anchors are installed by applying torque without grout, offering predictable capacity based on installation torque. They excel in stabilizing failing walls due to quick setup and versatility.
• Ground anchors: Prestressed tendons grouted into drilled holes, providing high-capacity resistance for deep stabilization.
• Deadman anchors: Concrete blocks buried in stable soil behind the wall, relying on mass for pullout resistance.
• plate anchors: Steel plates with tendons that deliver high-capacity pullout resistance through bearing action.

Helical tiebacks and ground anchors stand out as best for failing walls, thanks to immediate load transfer and low site impact (ADSC-IAFD standards).

When selecting retaining wall anchors, evaluate soil type, anticipated loads, and site access constraints. Cohesive clays favor helical options, while granular sands suit prestressed systems. Load requirements and minimal excavation needs guide choices for efficient stabilization.

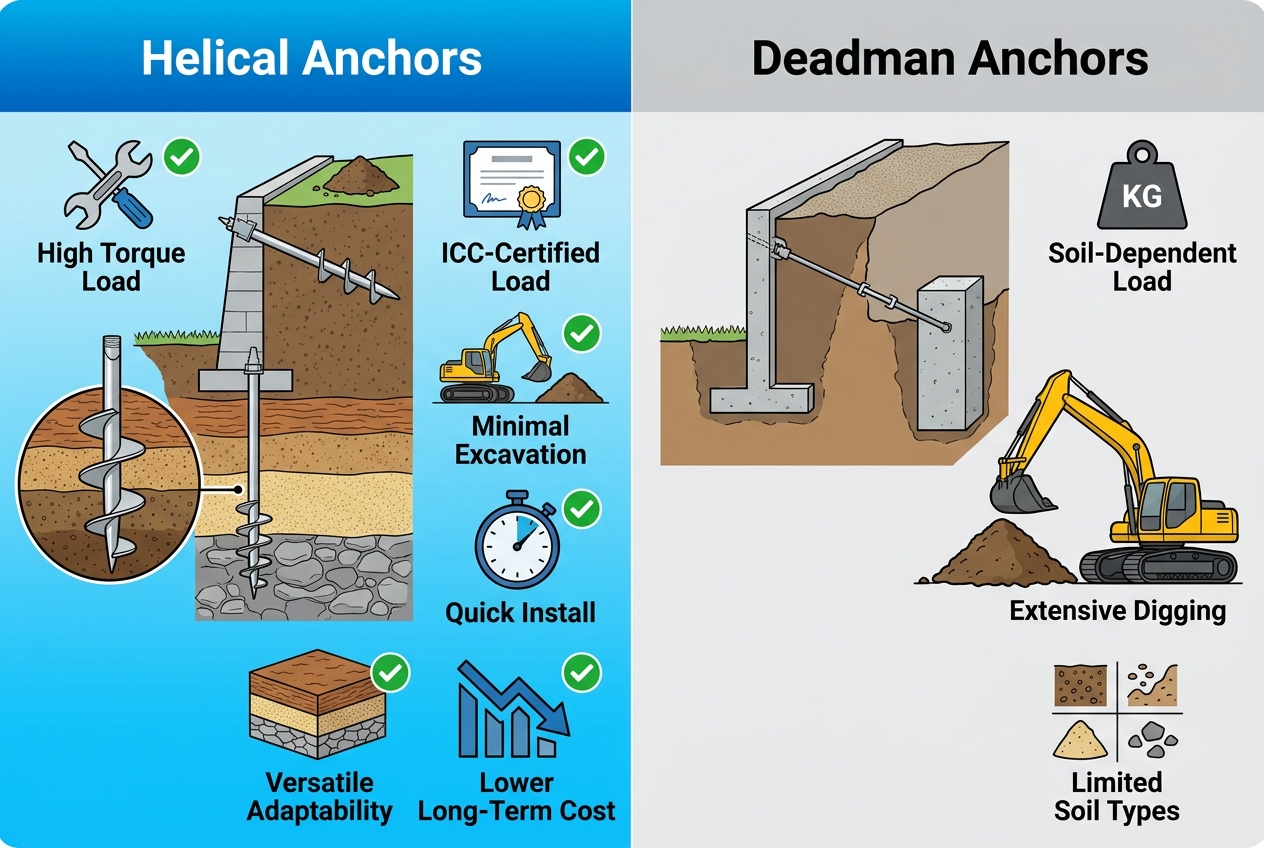

Helical Anchors vs Deadman Anchors Comparison

This table underscores helical anchors’ edges in speed, adaptability, and ICC-certified reliability over deadman systems, which demand more site preparation. For projects prioritizing efficiency, helicals reduce timelines and costs significantly.

Helical vs Deadman Anchors

Building on these options, helical anchors outperform deadman anchors in key areas. Helical systems correlate torque directly to capacity, backed by ICC certification for dependable performance across soils. Deadman anchors depend on backfill mass, limiting use in poor conditions.

Installation favors helicals with no excavation or grout curing waits, enabling rapid deployment. Deadmans require digging and concrete placement, extending timelines.

• Helical pros: Versatile in clay, sand, rock; durable for long-term savings.
• Deadman cons: Site disruption; soil-specific suitability.

We at Helical Technology recommend helicals for most retaining wall repairs, consulting our network of structural engineers for project-specific guidance.

The comparison reveals helical anchors’ superior versatility and efficiency, ideal for residential and commercial applications. Deadman systems suit military or stable sites but falter elsewhere, highlighting the need for soil assessments.

Helical Anchors vs Deadman Anchors comparison for retaining wall fundamentals

These insights emphasize helical advantages, transitioning to broader civil uses where ground anchors shine.

Ground Anchors for Civil Projects

Ground anchors for civil projects divide into permanent and temporary types, suited for high-load applications like bridge abutments, dams, and retaining structures. Permanent versions feature corrosion protection via encapsulation, ensuring longevity (ADSC-IAFD standards).

Temporary anchors support construction phases with removable tendons. For ground anchors retaining wall systems, prestressed designs handle tensile forces effectively in engineered projects.

Key US suppliers include Williams Form Engineering and Ischebeck USA, offering robust solutions. At Helical Technology in Littleton, CO, we distribute ICC-certified products compatible with these systems, providing engineering support.

These fundamentals inform proper sizing and placement for optimal performance. Consult a structural engineer for site-specific designs complying with building codes.

Benefits of Retaining Wall Anchors

Beyond installation methods, retaining wall anchors offer unmatched benefits like enhanced stability, reduced maintenance costs, and versatility across wall heights. These advanced earth anchoring systems provide reliable support for soil retention structures, minimizing risks of failure in demanding environments. At Helical Technology, we distribute ICC-certified products that deliver these advantages, ensuring long-term performance for contractors nationwide.

Stabilization Advantages of Helical Tiebacks

Helical tiebacks excel in stabilizing retaining walls by transferring loads to competent soil layers, preventing lateral movement and structural distress. According to standards from the Association of Drilled Shaft Contractors / International Association of Foundation Drilling (ADSC-IAFD), these Wall Plate Anchors complemented by helical tieback anchors distribute pressure evenly across wall surfaces.

Key advantages include:

• Load-bearing capacity up to 50-100 tons per anchor, ideal for high-pressure zones.
• Corrosion resistance from galvanized steel coatings, extending service life in harsh soils.
• Even load distribution that counters bowing and cracking by engaging stable strata.
• Minimal site disruption during installation, preserving surrounding landscapes.

These features underscore the superior efficacy of retaining wall anchors in demanding stabilization scenarios.

Cost-Effectiveness and Long-Term Savings

Retaining wall anchors, particularly helical tieback anchors, prove cost-effective through streamlined installation and durability. They require less excavation than traditional deadman systems, lowering labor and material expenses while accelerating project timelines.

Quantifiable benefits encompass:

• Installation at $50-150 per linear foot, 30-50% less than concrete alternatives.
• Minimal excavation needs, reducing site prep costs by up to 40%.
• 20-30 year lifespan without replacement, yielding 25% overall savings per ADSC-IAFD guidelines.
• Low ongoing maintenance, avoiding frequent repairs common in older methods.

This economic edge positions anchors for retaining walls as a smart investment for budget-conscious projects.

Support for Tall Walls and Civil Projects

Ground anchors retaining wall systems shine in tall structures over 20 feet and civil engineering applications, where preload tensioning counters hydrostatic pressures and seismic forces. Our foundation repair solutions support highway embankments and infrastructure, complying with building codes via ICC-ES criteria.

Notable strengths feature:

• Preload tensioning up to 100 kips for walls exceeding 20 feet in height.
• Proven in case studies of highway embankments, enhancing embankment stability.
• Seismic compliance in high-risk zones, per industry association best practices.
• Versatile integration with civil projects, from bridges to urban retaining features.

Consult our network of structural engineers for project-specific guidance. These capabilities affirm retaining wall anchors’ reliability across scales.

These benefits make anchors ideal for diverse installations–explore techniques next. Learn practical installation methods and project selection guidance in the following section below.

Installation of Retaining Wall Anchors

At Helical Technology, we specialize in supplying advanced earth anchoring systems for retaining walls, ensuring long-term stability through precise installation of retaining wall anchors. Proper techniques adapt to site conditions and follow industry standards, linking directly to effective wall design and types discussed previously. Installation varies by soil type, with specialized processes for helical tiebacks and ground anchors to achieve optimal performance.

Anchors in Different Soil Conditions

Adapting retaining wall anchors to soil conditions is critical for load capacity and durability, as per ADSC-IAFD authoritative industry association standards for anchored earth retention. In clay soils, use longer helical plates with 1.5-2x embedment depth and corrosion-resistant coatings to counter high adhesion and moisture retention. For sand, pre-auger holes 1.5 diameters wider than the shaft to minimize friction loss and ensure advancement without excessive torque.

Rocky soils demand pneumatic drilling to depths of 20-30 ft before anchor placement, allowing precise positioning around obstructions. Always wear PPE including hard hats, gloves, and eye protection, and verify torque with calibrated gauges. These adaptations prevent failure and settlement under 0.25 inches.

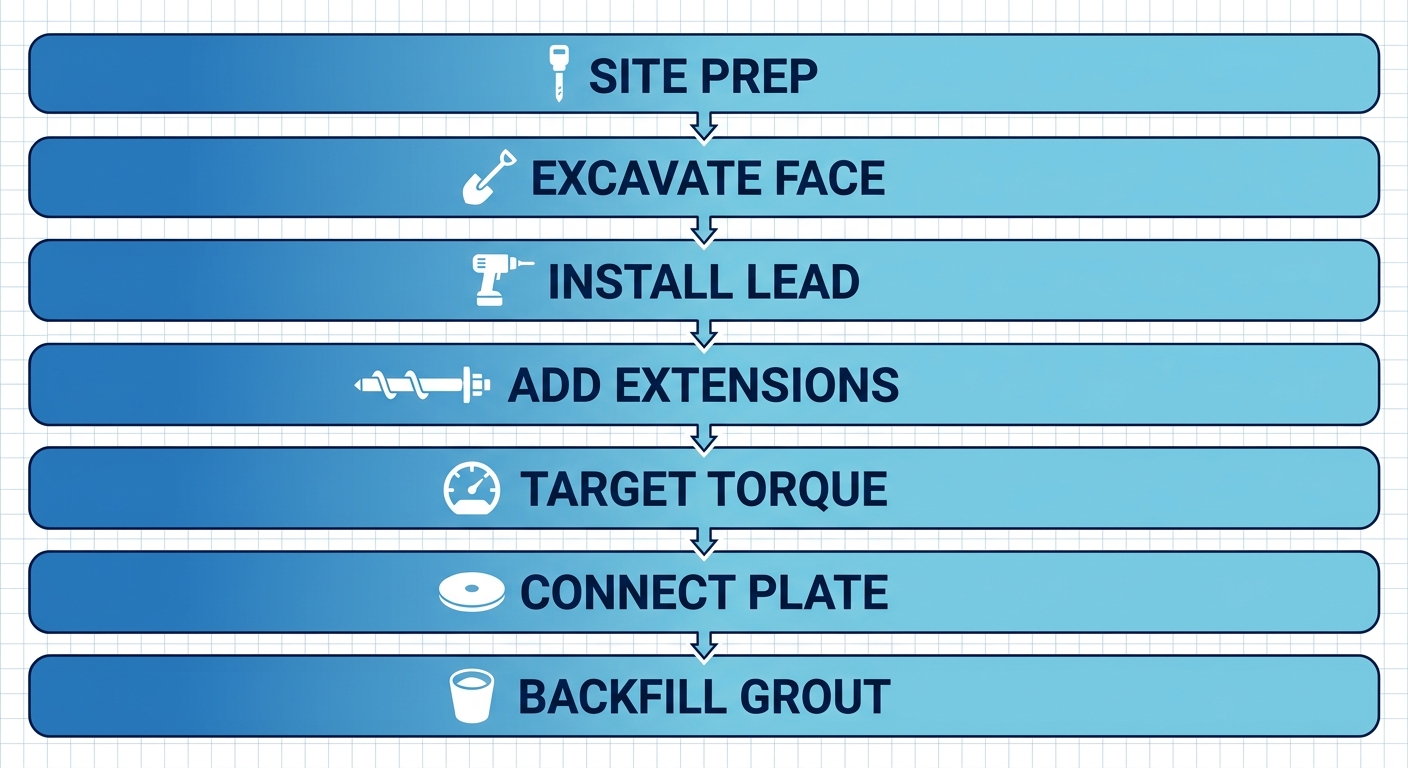

Helical Tieback Installation Process

Helical tieback anchors provide reliable lateral support for retaining walls in varied conditions. We follow a proven 7-step process aligned with ADSC-IAFD guidelines for foundation drilling and proof testing:

1. Conduct site preparation with a torque probe to assess soil strength.
2. Excavate the wall face to expose the connection area.
3. Install the lead section, torquing to 500-2000 ft-lbs/ft.
4. Add extensions while monitoring crowd pressure.
5. Achieve target torque and capacity via proof test.
6. Connect the shaft to the wall using wall plate anchors.
7. Backfill and grout for corrosion protection.

7-step helical tieback anchor installation process for retaining walls

Safety requires post-install monitoring for movement and compliance with ICC-ES criteria. Consult our network of structural engineers for project-specific guidance.

Ground Anchor Systems Setup

Similar to tiebacks, ground anchor systems for retaining walls demand meticulous setup for tension resistance. Our 5-step process, informed by ADSC-IAFD standards, ensures secure integration:

1. Drill a pilot hole 6-12 inches in diameter.
2. Insert the tendon with grout tube.
3. Pressure grout at 500-1000 psi in stages.
4. Lock-off at 70-80% ultimate capacity.
5. Test pullout to 1.33x working load and attach to the waler beam.

Helical tieback anchors and ground anchors retaining wall setups prioritize torque verification and minimal settlement. Proper installation ensures long-term performance, verified through ongoing testing and maintenance.

Consult a structural engineer or our engineering team for site-specific design, as installations must comply with building codes and ICC-ES AC358.

Best Practices for Retaining Wall Anchors

Once installed, we recommend following these best practices to maximize retaining wall anchors performance and ensure long-term stability.

Maintenance and Longevity

Proper upkeep of ground anchors retaining wall systems prevents failures from corrosion or hydrostatic pressure. According to ADSC-IAFD authoritative industry association standards for foundation drilling and anchor installations, annual protocols extend service life.

• Conduct annual inspections for corrosion on helical tieback anchors, checking shafts and couplings for pitting or coating damage; clean and recoat as needed.
• Perform tension testing every 5 years via proof testing to verify load capacities, using calibrated jacks per manufacturer guidelines.
• Maintain drainage systems around anchors to avoid water buildup, ensuring gravel backfill and weep holes function to mitigate pressure.

Contact Helical Technology in Littleton, CO, for maintenance kits tailored to your project.

Beyond maintenance, selecting the right supplier ensures quality components for reliable ground anchors retaining wall performance.

Sourcing and Supplier Selection

We prioritize US-based suppliers like Helical Technology for ICC and ISO Certified products in commercial structural anchors. Verify datasheets for precise load ratings to match site demands.

• Choose ISO-certified manufacturers with proven track records in helical products; request material certifications and third-party testing reports.
• Review supplier datasheets for ultimate load capacities and installation torque correlations specific to retaining wall applications.
• Partner with distributors offering engineering excellence and design support, such as our network, for custom quotes and rapid delivery.

Reach out to us for advanced earth anchoring systems suited to your needs.

In civil projects, engineering rigor complements supplier quality for seamless retaining wall anchors integration.

Engineering and Civil Applications

Geotechnical assessments upfront guarantee helical tieback anchors efficacy in civil works. ADSC-IAFD standards emphasize compliance for anchored earth retention.

• Complete site-specific geotechnical evaluations to determine soil properties and anchor spacing before installation.
• Adhere to ASTM D6386 for helical anchors, ensuring proper embedment depths and helix configurations for lateral resistance.
• Secure ICC-ES certifications to validate structural integrity, consulting our network of structural engineers for project-specific designs.

These steps reduce risks in demanding environments.

Effective training builds on engineering foundations, empowering installers with essential skills.

Training and Technical Support

Certified programs from ADSC-IAFD equip teams for safe helical tieback anchors handling, aligning with OSHA requirements.

• Enroll in ADSC-IAFD certified installer programs covering torque monitoring and proof testing techniques.
• Leverage on-site technical support from suppliers like Helical Technology for hands-on guidance during projects.
• Complete OSHA-compliant training on equipment operation and fall protection for elevated anchor work.

Apply these practices in real-world projects as shown in upcoming case studies. Consult our team for training & on-site installation training / installer certifications.

Achieving Reliable Retaining Wall Stability

Building on foundational design principles, reliable stability demands reinforcement via retaining wall anchors. These systems counter soil pressure and lateral forces that threaten wall integrity, preventing costly failures in demanding projects. At Helical Technology, we supply advanced earth anchoring systems proven to enhance load distribution and long-term performance. We collaborate with engineers to validate designs and site suitability.

Helical tieback anchors excel by transferring wall loads into stable soil strata through helical plates that resist pullout effectively. This design minimizes settlement risks and suits varied geologies. Ground anchors for retaining walls follow precise mechanics: drill to depth, insert tendon, then tension and grout for secure bonding. They provide predictable load paths and significantly reduced maintenance needs.

Ensuring secure tieback terminations optimizes load transfer, as per ADSC-IAFD authoritative industry association standards for anchor design and installation. These guidelines emphasize quality grouting and testing to uphold safety.

Select anchors matching site-specific soil conditions and wall height. Consult our network of structural engineers for project-specific guidance. Selecting the right anchors sets the stage for precise installation techniques. Early engagement reduces risk and ensures schedule and budget alignment.
